Product Details:
|
| Appliaction: | Well Completion Tools | Casing Size: | 4 1/2 " |
|---|---|---|---|
| Type: | Dissolvable Bridge Plug | Dissolution Medium: | ≥0.05%KCL |
| Standard: | API | Working Condition: | Standard Servcie |
| Working Pressure: | 10000 Psi | Length: | 560 Mm |
| High Light: | retrievable bridge plug,bridge plug setting tool |
||

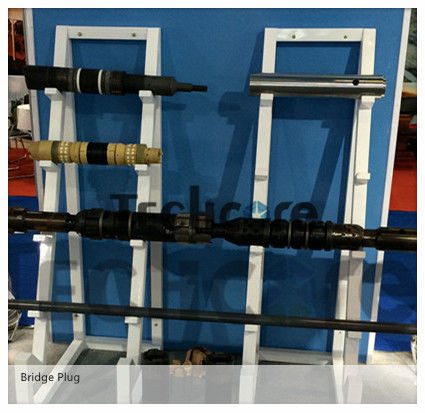

Downhole Soluble Bridges Oilfield Equipment Well Completion 4 1/2" API Standard
Introudction of Soluble Bridge Plug
The Soluble Bridge Plug is a sort of the bridge plug used for the well completion service in oil well. The soluble bridge plug is made of soluble materials, which will be dissolved by the antidrainage solution. the soluble bridge plug is able to reduce the drilling time and drilling cost as well as reduce the influence on the layer.
Features of the Soluble Bridge Plug
* Double back ring of the soluble bridge plug structure can protect the rubber cylinder better.
* The soluble bridge plug can be quickly dissolve away, as the guide shoe and the gear ring adopt the
instant soluble material.
* Large tube is used to prevent blockage, keep liquid flow and improve the efficiency of dissolution.
Specification of Dissolvable Bridge Plug
| Casing size | Weight | Max. OD | Min. ID | Length | Pressure | Temp. |
| In | lb/ft | mm | mm | mm | Mpa | oC |
| 5 1/2 | 17-20 | 113 | 35 | 600 | 70 | 40-120 |
| 20-23 | 110 | 35 | 600 | 70 | 40-120 | |
| 26.8-29.7 | 103 | 35 | 567 | 70 | 40-120 | |
| 99 | 30 | 567 | 70 | 40-120 | ||
| 4 1/2 | 11.6-13.5 | 93.35 | 30 | 558 | 70 | 40-120 |
| 13.5-15.1 | 91.44 | 30 | 565 | 70 | 40-120 | |
| 3 1/2 | 9.2-10.2 | 67.56 | 24.13 | 437 | 70 | 40-120 |
About Techcore Oil Tools
Techcore Oil Tools has committed to the design of downhole tools for more than ten years.With the professional Research and Development (R&D) department and skilled engineers, Techcore improves the advanced technology in design and manufacture of the downhole oil tools .
Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
Welcome to contact us for more information about the downhole tools and our best service!!
