Product Details:
|
| Appliaction: | Well Completion Tools | Tool Size: | 4 1/2" |
|---|---|---|---|
| Type: | Retrivable Bridge Plug | Connection: | EUE Box X Box |
| Standard: | NACE 0175 | Working Condition: | Standard Servcie |
| Working Pressure: | 10000 Psi | Setting: | Mechanical Setting |
| High Light: | Mechanical Set Retrievable Bridge Plug,10K Wireline Retrievable Bridge Plug,Downhole Testing Wireline Set Bridge Plug |
||

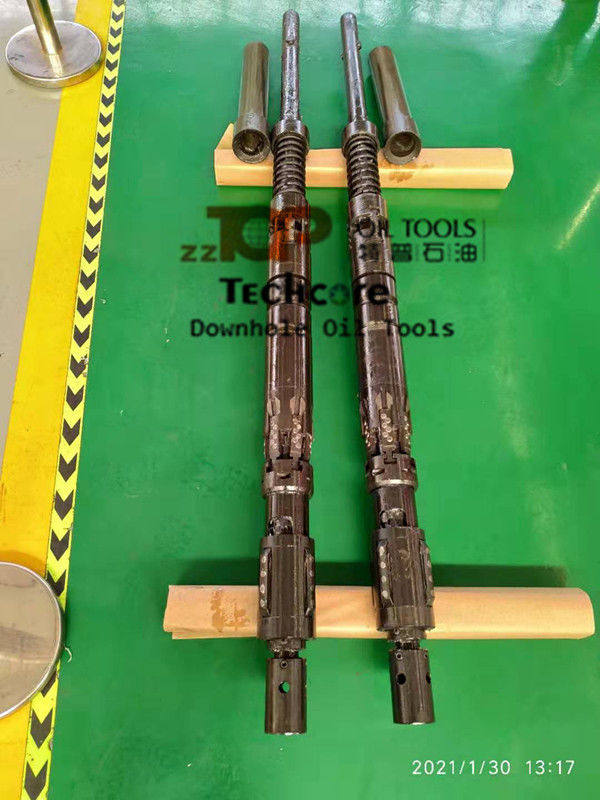

Retrievable Bridge Plug 4-1/2” 11.6-13.5# 10K For Oil Well Downhole Testing
The Retrievable Bridge Plug (RBP) is a high-pressure packer style bridge plug used for multiple selective zone treating and testing operations. The RBP is designed to set in tension or compression, which makes it ideal for shallow applications to test wellhead for deep, high-pressure applications.
This plug can be run alone on tubing or can be run below the Viper or Cobra packer. The tool is run in the hole,set, and released from the tubing or packer. It remains in place until the tubing or packer is re-latched, the bypass valve is opened, and the slips are released.
Specification of the Model 3L retrievable bridge plug
| 1 | Packer Element OD | 89.9mm |
| 2 | Top Shoe OD | 96.0mm |
| 3 | Length | 2770mm |
| 4 | Packer Element Diff.Pressure | 70Mpa |
| 5 | Tensile Strength | 444KN |
| 6 | Internal Pressure Strength | 172Mpa |
| 7 | External Pressure Strength | 158Mpa |
| 8 | Torque Strength | 7.5KN.M |
| 9 | Working Temperature | -29oC~180oC |
| 10 | Casing Range | 41/2"11.6-13.5lb/ft |
| 11 | Service | H2SNACEMR 0175(Above 175F) |
| 12 | Thread Connection | 27/8"8RDEUEx 23/8"8rdEUE |
About ZZ TOP OIL TOOLS - TECHCORE
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
* "JC Wellhead" was estabilished in 2010 in Yancheng city, specialized in design and manufacturing of the oilfield wellhead equipment conformed with API 6A specification.
* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
As the whole team, ZZ TOP is always following the principle of “ Customer First” and offers high quality products combined with excellent service, insist on “Trace-ability, Serialization” for each tools and related parts. And as the head office of JC wellhead and Techcore, focuses on marketing ,sales and after-sales, we are based on customer satisfaction.
Drill Stem Testing Tools
RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
Welcome to contact us for more information about the downhole tools and our best service!!
