Product Details:
|
| Usage: | Drill Stem Testing Tools | Application: | Oil Well Downhole Testing Sevice |
|---|---|---|---|
| Material: | Alloy Steel | Tool Size: | 5 Inch |
| Standard: | NACE MR0175 | Working Condition: | H2S Service Above 175oF |
| Working Pressure: | 15000 Psi | Connection: | CAS Box X Pin |
| Delivery: | 30-40 Days | ||
| High Light: | Donwhole Pressure Safety Valve,Oil Well Subsurface Safety Valve,LPR-N Select Tester Valve |
||

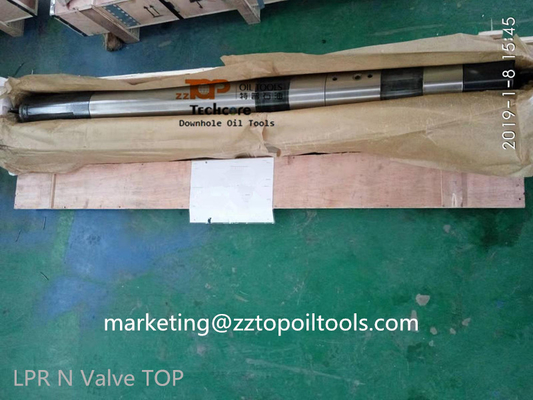

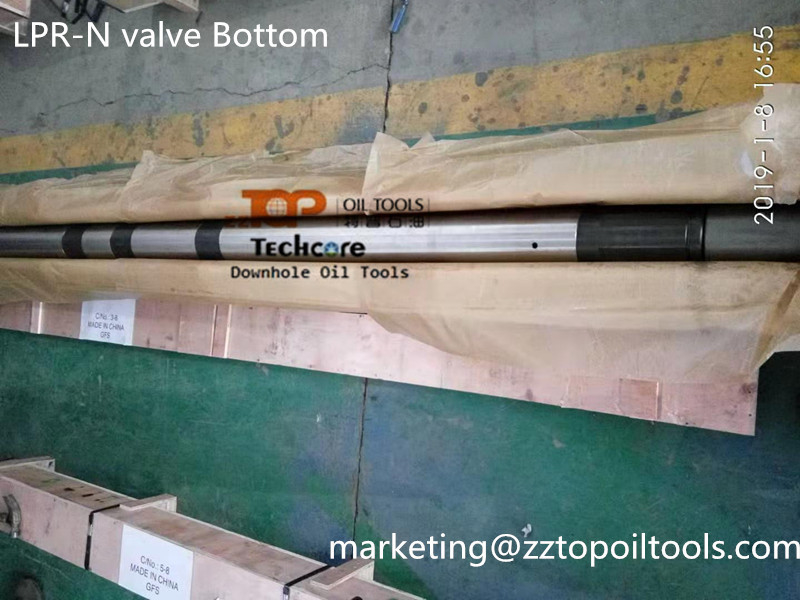

Donwhole Tester Valve LPR-N Valve 5" x 15000psi For Oil Well Testing
The LPR- N Tester Valve is a kind of downhole tester valve used in oil well testing service. The LPR-N valve is a full-opening, annulus pressure-operated valve. The tester valve permits measuring multiple closed-in pressures in cased holes where pipe manipulation is restricted and a full-opening string is required.
The nitrogen chamber of LPR-N valve is charged at the surface to a selected pressure determined by surface temperature and bottomhole temperature and pressure.
The ball valve on the tester valve operates independently of internal pressure changes, like with acidizing or fracturing operations, no need special bypass tools, but if a production packer is used, the pressure will transfer to formation directly if no bypass tool involved.
Specification of Downhole tester valve
| NO. | Specification | 5” |
| 1 | OD | 5”(127mm) |
| 2 | ID | 2.25”(57mm) |
| 3 | Length(mm) | 288.2”(7319.5mm) |
| 4 | Working pressure | 15000 PSI(105Mpa) |
| 5 | Maximum open pressure differential | 5000PSI(35Mpa) |
| 6 | Tensile strength(Yield) | 2020.5kN |
| 7 | Torque strength | 30.9kN.m |
| 8 | Service Environment | Mud, crude oil, natural gas with H2S, Apply to NACE MR0175-2003 |
| 9 | End connection | 3 7/8CAS. BXP, 3 1/2 IF BXP |
| 10 | Service temperature | -20oF~400oF |
Drill stem testing tools for cased hole, open hole and slim hole are available as below
RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
Circulating valve: omni circulating valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
ZZ TOP Oil Tools Service
Strict quality control system
ZZ Top Oil Tools with the sub-factory certified by ISO is expert in design and production of downhole well testing tools. All the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Continuous after sales service
ZZ TOP Oil Tools provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.
Welcome to contact us for more information of the downhole tools!
