Product Details:
|
| Application: | Well Testing Service | Type: | External Gauge Carrier |
|---|---|---|---|
| Gauge Qty: | 2 Ea Gauge | Usage: | Data Acquisition |
| Working Pressure: | 15000psi | Working Temperature: | 400F |
| Thread Connection: | EUE/IF/CAS/VAM/PH6/XT39 | Gauge Size: | Max. OD1.27" |
| Highlight: | 15000psi Drill Stem Test Tools,OD 5" Oilfield Fishing Tools,DST Drill Stem Test Tools |
||

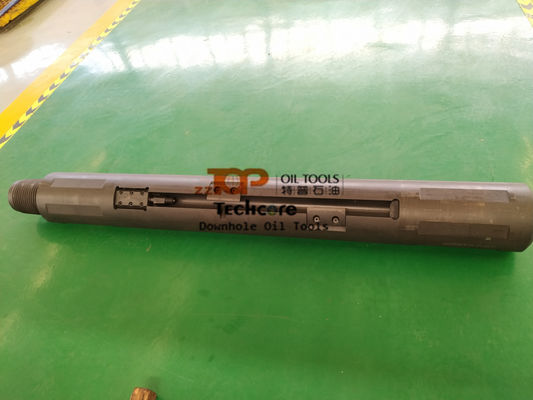

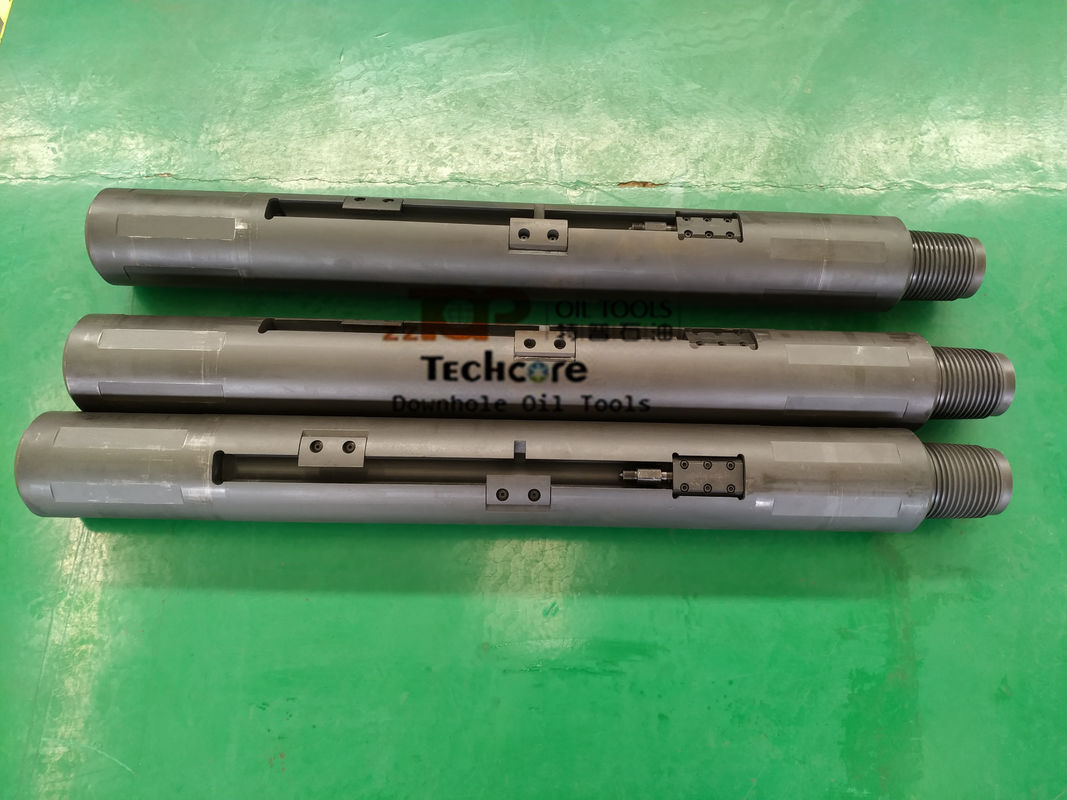

Well Testing External Gauge Carrier with 15000 psi W.P. 2 ea gauge
The External Gauge Carrier is designed as a platform for data acquisition. The gauge carrier is used in well testing service to carry pressure or tempeature gauges in the flow steam to monitor downhole conditions while maintaining a full opening through the tools, base on different design the gauges can read tubing or Annlus data.
External Gauge Carrier provides one pocket, which houses two Micro Automatic Gauges and/or accelerometer Units.The external type gauge carrier is designed for holding large size gauges upto 1.27"OD. Normally external gauge carriers that have an offset OD and can carry two or four max.65" electronic or mechanical gauges in the standard 5" OD carrier. The Micro Automatic Gauges provide a record of internal drill pipe ID pressure and temperature and well bore pressure and temperature
Specification of gauge carrier
| 1 | Specification | 5” |
| 2 | Working pressure | 15000 psi |
| 3 | Gauge number | 2ea |
| 4 | Gauge OD | 1.25” |
| 5 | Gauge Length | 12.5-18.7” |
| 6 | Connection | 4” XT39 Box-pin connection |
| 7 | Working Temperature | >300 F |
| 8 | Working condition | Standard Service |
| 9 | Min tool ID | 2.25” and able to run slickline tool |
Advantage of Techcore Oil Tools
Techcore under ZZ TOP OIL TOOLS is expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.
Product Scope
* RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
* Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
* Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
* Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
