Product Details:
|
Application: | Well Testing Service | Working Pressure: | 10000 PSI |
---|---|---|---|
Working Condition: | H2S Service Above 175oF | Standard: | NACE MR0175 |
Specification: | 4.75" | Material: | Alloy Steel / Inconnel |
Product Name: | Storm Valve | Warranty: | 1 Year |
Highlight: | SSC Valve Drill Stem Testing Tools,10000Psi Drill Stem Testing Tools,Inconel Drill Stem Testing Tools |

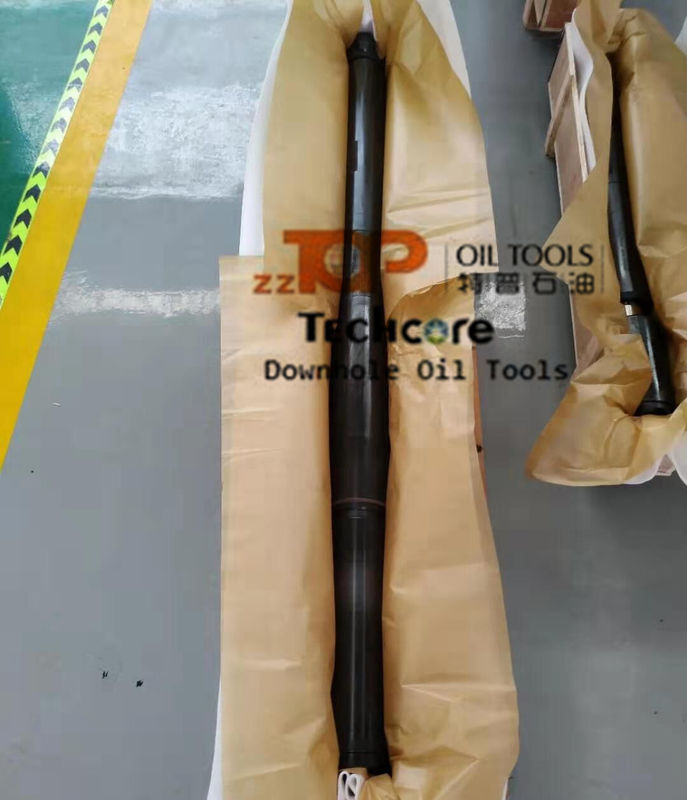

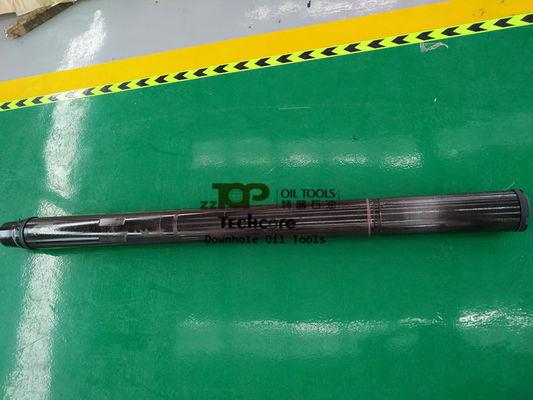

Drill Stem Testing Tools SSC Valve 10000 psi WP Storm Valve For Well Testing
The Subsurface Control Valve Storm Valve is is a combination valve, aslo called Storm Valve, which is especially useful in offshore operations when storms are expected or when surface equipment, such as blowout preventers, must be repaired. Becasued the storm valve allows operators to close in a well that is being drilled without having to pull the workstring.
Normally a hookwall type packer, such as the RTTS Packer, is used with the Storm Valve to support the weight of the workstring. The packer seals inside the casing (surface pipe or intermediate casing string), and the SSC Valve seals the inside diameter of the workstring. Because the SSC Valve includes a back-off connection, the workstring above it can be removed and reconnected when operations resume
Benefit of Subsurface control valve
• The subsurface control valve can save rig time during operation.
• It is easy to operate the subsurface control valve.
• The subsurface control valve tests blowout preventers during drilling operations
• The subsurface control valve can increase the rig crew’s safety
Specification of RTTS packer
1 | OD | 4.75”(120.65mm) |
2 | Flow Aread | 1338.12mm2 |
3 | Length | 1746.5mm |
4 | Working Pressure | 70Mpa(10000psi) |
5 | Tensile Strength | 1850KN |
6 | Burst Pressure | 89.3Mpa |
7 | Collapse Pressure | 84.7Mpa |
8 | Torque Strength | 52.9kN.m |
9 | Working Temp. | -29oC~240oC |
10 | Service | H2S NACE MR0175(Above 175F) |
11 | Connection Thread | 3 1/2” IF Box-Pin |
About ZZ TOP OIL TOOLS - TECHCORE
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
* "JC Wellhead" was estabilished in 2010 in Yancheng city, specialized in design and manufacturing of the oilfield wellhead equipment conformed with API 6A specification.
* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
ZZ TOP Oil Tools can also support client with One-Stop Procurement Service and flexible payment term under short or long term financing service. We always believe that the success of our company is directly related to our strict quality control and professional service. From the raw material booking till finished products, the inspector will be appointed to supervise the whole processing. We always provide clients with innovative solutions, quality materials and timely delivery.
* Drill stem testing tools are available for cased hole, open hole and slim hole including:
RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
Other DST string tools: hydraulic jar / Big John Jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
