Product Details:
|
| Type: | Retrievable Packer | Application: | Wellbore Service |
|---|---|---|---|
| Casing Size: | 7" | Connection: | CAS. Box X Pin |
| Working Pressure: | 10000 Psi | Standard: | NACE MR0175 |
| Working Temperature: | Max. 450 OF | Working Condition: | Standard Service |
| High Light: | Well Testing Injection Straddle Packer,7" Casing Injection Straddle Packer,10000psi Injection Straddle Packer |
||

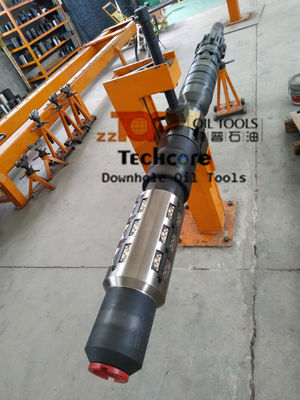

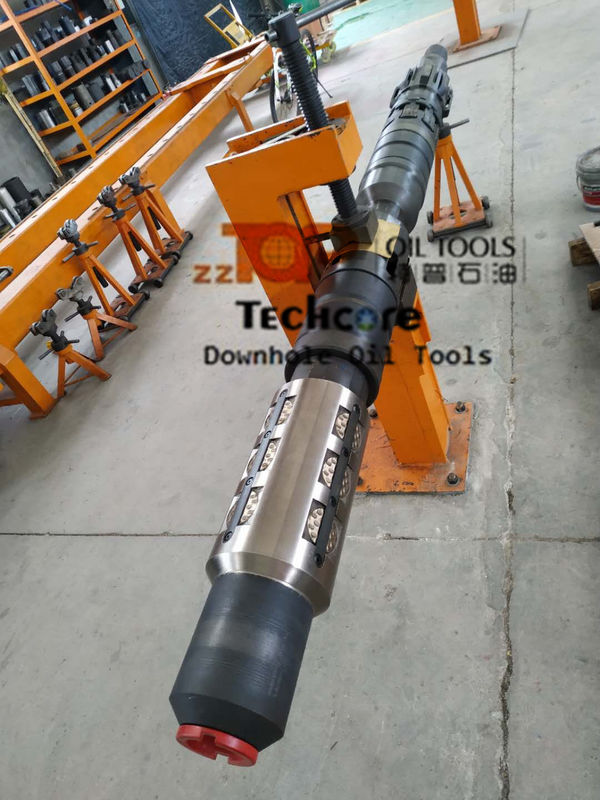

PinPoint Injection Packer 7” 17-26# Straddle Packer For Well Testing
The PPI packer is the Halliburton PinPoint Injection packer, which is a retrievable, treating, straddle packer. The PPI packer is featured with a space-out between packer elements which helps to ensure that the maximum number of perforations within a long producing interval can be broken down to accept stimulation fluids uniformly.In a single trip PinPoint Injection (PPI) packer can reduce trips in hole, isolate and perform step rate tests in just one trip per each zone. The PinPiont packer is a Halliburton packer, which is composed of a straight J-slot drag block body. The collar locator can be run either above or below the PPI packer if needed. The fluid passage through the center of the bottom packer is closed off with the retrievable plug or ball included in the conversion kit.
Technical Parameter of PPI packer 7" 17-26#
| Top Shoe OD | 152.4mm |
| ID | 38.1mm |
| Length | - |
| Packer Element Diff. Pressure | 70Mpa(10000psi) |
| Internal Pressure Strength | 98.5Mpa |
| External Pressure Strength | 92Mpa |
| Tensile Strength | 692KN |
| Torque Strength | 9.3KN.M |
| Working Temperature | -29oC~204oC |
| Service | H2S NACE MR0175 |
| Connection Thread | 2 7/8” 8RD EUE |
Advantage of Techcore Oil Tools
Techcore Oil Tools expertise in design and manufacture of the Drill Stem Testing Tools and other downhole tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Below are the main downhole oil tools we manufactured:
* RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,
* Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve
* Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve
* Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
