High Pressure Double Grip Mechanical Retrievable Packer

High Pressure Double Grip Mechanical Retrievable Packer
High Pressure Double Grip Mechanical Retrievable Packer High Pressure Double Grip Mechanical Retrievable Packer High Pressure Double Grip Mechanical Retrievable Packer

Large Image :  High Pressure Double Grip Mechanical Retrievable Packer

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV, SGS
Model Number: RTTS Packer 4 1/2" - 13 3/8"
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 200 sets/month

High Pressure Double Grip Mechanical Retrievable Packer

Description
Application: Oil Well DST Operation Connection: CAS BxP
Type: APR Tools Working Condition: Sour Service Above 175oF
Working Pressure: 70 Mpa Casing Size: 5 Inch, 7 Inch, 9 5/8inch, 13 3/8inch
Use: Well Drilling Material: Alloy Steel / Inconnel
Product Name: API 11D RTTS Packer Retrievable Casing Packer Packing: EXPORT PACKING
Warranty: 1 Year Working Pressure: 35Mpa-75Mpa
Advantage: High Performance
High Light:

well packer

,

open hole packer

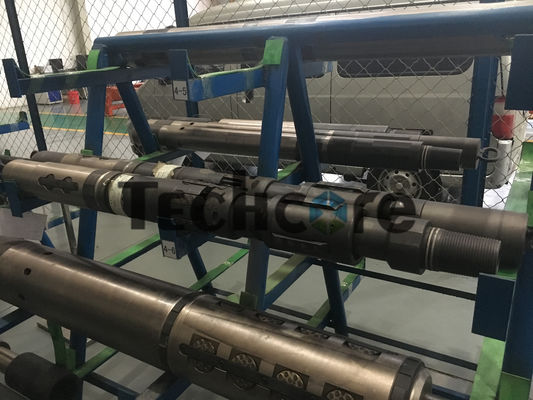

High Pressure Double Grip Mechanical Set Retrievable Packer Oil Well Casing Packer



The Full Bore Retrievable Packers is named RTTS packer in Halliburton drill stem testing tools.  The RTTS packer is a full-opening, hookwall packer with double grip and mechanical setting, the retrievable packer used for well testing job, treating operation, and squeeze cementing operations. Normally, the RTTS packer is run in the hole with a circulating valve assembly.



Function and Operating of RTTS packer



When starting the RTTS packer into the hole, place J-slot in the drag block sleeve in the locked position. The tool is run slightly below the desired setting position and is then picked up tool to setting position and rotated pipe several turns to right(on bottom, only 1/2 turn is required).Holding right torque in pipe, slack off the pipe weight until mechanical slips on the tool set and start taking weight .At the same time the packer element is compressed against the wall of the casing, then the packer can isolate the annular from the test zone. Self-guard hydraulic hold down mechanism can prevent the packer from bouncing up because of the high pressure below the packer. When it is extra, pressure can be into the annular space between the volume tube, hydraulic hold down body and the lower mandrel through the radial hole on the lower mandrel, then to reach the round hydraulic hold down slip and compress the slip retractor spring, then the round hydraulic hold down slip lean against the inside wall of the casing closely and help prevent the tool from being pumped up the hole.




Specification of RTTS Packer



Size /inch Casing range / Lb/Ft Size /inch Casing range / Lb/Ft
4 1/2 9.5 8 5/8 24-49
15.1-18.1 9 5/8 40-71.8
11.6-13.5 29.3-53.5
5 23 10 3/4 32.75-55.5
15-18 60.7-81
11.5-13 11 3/4 38-54
5 1/2 23-26 60-71
20-23 13 3/8 48-72
13-20 72-98
6 15-23 16 75-109
6 5/8 24-32 109-146
7 17-38 18 5/8 78-118
49.5 20 94-133
7 5/8 20-39 169-204





Technical parameter of Full Bore Retrievable Packer



No Specifications 5"
1 Pressure differential across the pacing ring 70MPa
2

Internal Yield Pressure strength

(Bursting pressure)

124 MPa
3

External Yield Pressure strength

(Collapse Pressure)

116MPa
4 Tensile Strength(Yield) 652KN
5 Torque Strength 8.5 KN·m
6 Service environment Mud, Crude Oil, Natural gas with H2S and acid
7 Service temperature --29oC~+204oC
8 End connections 33/32-10UN. B x 2 7/8 UP Tubing. P 2 7/8 UP Tubing BXP





   High Pressure Double Grip Mechanical Retrievable Packer 0   High Pressure Double Grip Mechanical Retrievable Packer 1



Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..



Welcome to contact us for more informatio about downhole tools!
