Product Details:
|
| Tool Type: | Retrievable Packer | Working Pressure: | 10000 Psi |
|---|---|---|---|
| Material: | Alloy Steel | Casing Size: | 7 Inch |
| Standard: | NACE MR0175 | Working Condition: | H2S Service Above 175oF |
| Application: | Oil Well Testing Service | Connection: | CAS Box X Pin |
| High Light: | RTTS Retrievable Packer,10000psi Retrievable Packer,Mechanical Setting Retrievable Packer |
||

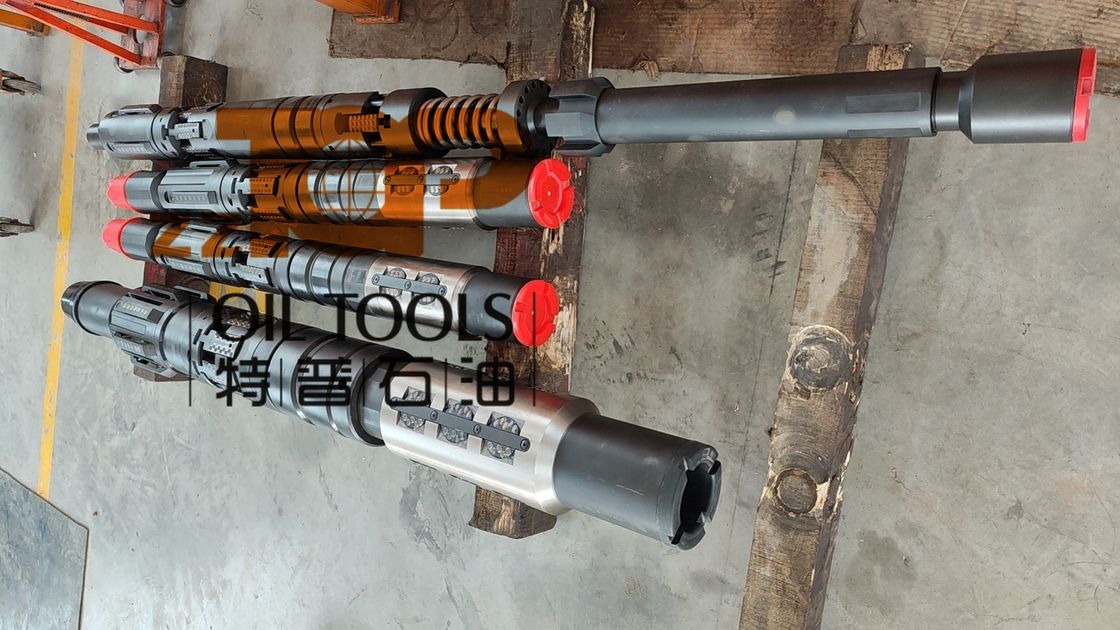

Mechanical Setting Retrievable Packer / RTTS Packer 10000psi Working Pressure
Function and Operating Principle of Double Grip High Pressure Retrievable Packer
A Packer is essential tool to run drill stem testing for cased hole to isolate and seal the downhole formation.The RTTS Packer is a full bore retrievable packer with mechanical setting specially for Full Bore Drill Stem Testing (DST) and Tubing Conveyed Perforating (TCP) operations..
The RTTS packer is the hookwall type packer which can segregate bidirectional pressure designed It is normally operated by mechanical lifting and rotating to setting and unsetting. In order to proceed testing with other multi-testing like slick line/wireline or coiled tubing,a full opening type is needed.Also the packer can be retrievable and used for testing,Treatment,Squeeze,so it is called RTTS(Retrievable,Testing,Treatment
and Squeeze)Packer,the full opening permits pumping large volumes of fluid with a minimum pressure drop,and allows the passage of a through tubing type perforating gun,it will help make the tool usable for multiple operations with one trip in the hole.
Technical parameter of Ordered RTTS Packer
| No. | Description | Qty | Unit |
| 1 | 7"23-29#RTTS Packer, working Pressure 70Mpa(10, 000psi) ,Working Temperature 400F, Including Circulating Valve, H2Sasper NACE MR 0175, Thread Connection 3-1/2"IF Box xP in | Ea | 1 |
| 2 | 7"23-29#RTTS Packer, working Pressure 70Mpa(10, 000psi,Working Tempreture400F, Incl cu ding Storm Valve, H2SasperNACE MR 0175, Thread Connection 3-1/2"IF Box xP in | Ea | 1 |
| 3 | J Slot Housing(Lower Housing) for Left Hand Setting Option- | Ea | 1 |
| For 7”RTTS Packer, Drag block Sleeve | |||
| 4 | Rubber element Kit, for 7"23-29#Packer, 1set=2pcs, | Set | 3 |
| Suggested to replaced after each run, FKM, 400F | |||
| 6 | 7"23-29#RBP Packer, working Pressure 70Mpa(10, 000psi,Working Temperature 400F, H2SasperNACEMR 0175,Thread Connection 3-1/2"EUE on the Running Tool | Ea | 1 |
| 7 | Rubber element Kit, for 7"23-29#RBP, 1set=2pcs, Suggestedto replaced after each run, FKM, 400F | Set | 2 |
| 8 | Seal Ring Redress Kit for RBP 7”23-29#, 1set=1run, Need to bereplaced after each run | Set | 2 |
| 9 | 9-5/8"36-53.5# RTTS Packer, working Pressure 70Mpa(10, 000psi, Working Temperature 400F, Including Circulating Valve,H2SasperNACEMR 0175, Thread Connection 4-1/2"IF BoxxPin Note:9 5/8"29.3-43.5#Kitassembledwithpacker,9 5/8”47-53.5#wil be delivered as spare |
Ea | 1 |
| 10 | Seal Ring Redress Kit for 9 5/8"Packer and Circulating Valve,1set=1run, Need to be replaced after each run | Set | 2 |
| 11 | Rubber element Kit, for 9 5/8”29.3-43.5#Packer, 1set=2pcs,Suggested to replaced after each run, FKM, 400F | Set | 2 |
| 12 | Rubber element Kit, for 95/8”47-53.5#Packer, 1set=2pcs,Suggested to replaced after each run, FKM, 400F | Set | 2 |
*The Packers are compatible with HALLIBURTON APR Tools.
About ZZ TOP Oil Tools
ZZ TOP Oil Tools expertise in supply of the Drill Stem Testing Tools for more than Ten years. In 2016, ZZ TOP established the brand Techcore Oil tools with the professional Reserch and Development (R&D) department improves the advanced technology in design and manufacture of the Drill stem testing tools, coiled tubing tools and wireline tools etc.

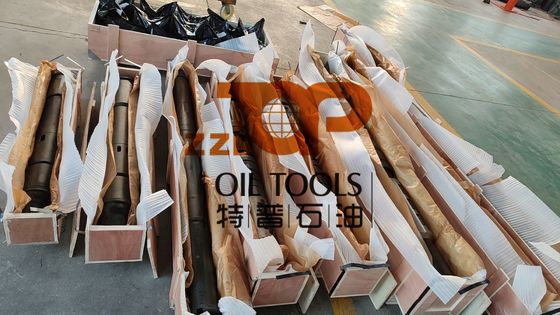

* Techcore insist on superior quality, strong packing & timely delivery.
*Third party inspection is available from SGS, BV, DNV etc.
* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the customers' benefits
* Techcore supply the cost effect products with 12 months guarantee
* Techcore insist on the traceability of each Drill stem testing tools and related DST parts
from the raw material to the finished products to meet on requirements of onshore and offshore standards.
Inspection of the Drill stem testing tools
