|Application:||Wireline Wellhead Pressure Control Operation||Product:||Integral Lubricator|
|Working Pressure:||15000 Psi||Service:||Standard Oil Well Condiction|
|Standard:||NACE MR0175 & API 6A||Working Condition:||Standard|
|Usage:||Wireline Pressure Control||Connection:||ACME Box XPin|
wellhead control system,
wireline pressure control equipment

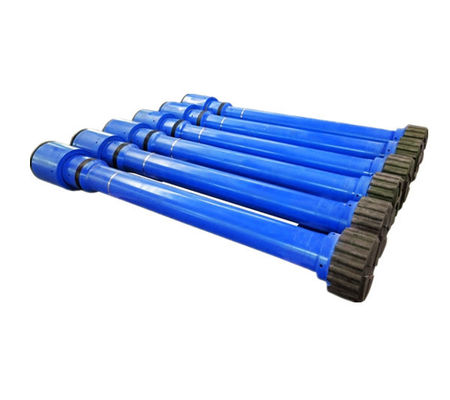

Wireline Integral Lubricator Wellhead Pressure Control Equipment
The lightweight integral lubricators is a part of wellhead pressure control equipment for wireline operation. The lubricator enable the wireline tool string to be run or retrieved from a well bore under pressure. The lightweight lubricator can be applied for singly also can use multiply according to the requirement of the oilfield wireline operation, and the seal control head always be assembled on the top of the lubricator. The length of single lubricator is 0.8-3m, the number of lubricator and total length will depend on operation.The integral lubricator made of Titanium alloy is much better quality and lightweight than normal steel materials.
Technical parameter of Integral Lubricator
One of Lubricator can work with lower catcher, with the function of quick testing.
Working pressure: 105Mpa(15000psi)
Bore Diameter: 130mm( 5 1/8”)
Connection: Quick union 12 1/4”-4THD(7.000”) OTIS
Material: AISI4130/35CrMo/EE PSL3
Wokring Temp.: -29～121℃
Medium: Crude Oil, Gas, Mud, Water(H2S)
Specification of Integral Lubricator
|ID (mm)||Cable Size||Connection||Service Environment||Working Temperature||WP (Psi)|
|62(65)||Ф1.8-Ф3.2||4 1/4''-6SA||Crude oil,water,Nature gas with H2S and CO2||
(high temperature to 350℃ thermal recover type optional)
|76(78)||5 '-4 ACME||5000|
|103||7 3/4''-5 ACME||5000|
