Product Details:
|
| Product: | Wireline BOP / Slickline BOP | Appliction: | Well Pressure Control Equipment |
|---|---|---|---|
| Usage: | Pressure Control For Wireline Operation | Service: | Standard Oil Well Pressure Control |
| Standard: | NACE MR0175 & API 6A | Working Condition: | Standard |
| Working Pressure: | 35 Mpa / 5000psi | Material: | AISI 4130 |
| High Light: | BOP Wellhead Pressure Control Equipment,API Wireline Blowout Preventer,AISI 4130 Wireline Blowout Preventer |
||

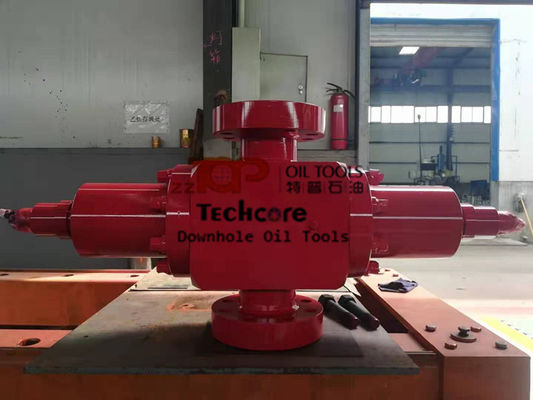

PI Wireline Blowout Preventer Slickline BOP WPCE Wireline Valve
The Wireline BOP is also called Slickline BOP, it is a wireline valve as the part of wellhead pressure control equipment, which seal the wellhead in the coiled tubing working, and located on the surface oilfield between wellhead an lubricator. The wireline BOP provide blowout protection during the wireline operation and slickline operation.
The wireline BOP / Wireline valve is designed and manufactured in accordance with API 16A specification, featured with simple structure, convenient application and maintenance, small volume, light weight, high pressure bearing, hydraulic remote control and simple and reliable operation.
The Wireline BOP is mainly composed of main casing, and ram assembly piston, hydraulic cylinder, lead screw, end cap, hand wheel and other spare parts, which are moving in the main casing in opposite direction.
| No. | Model | ID (mm) |
Working Pressure (Mpa) | Operation Manner | Type of Ram | Connection Manner | |
| 1 | SFZ5-21 | 52 | 21 | Manual | Single Ram | 3 1/2”-6SA | |
| 2 | SFZ6-35 | 62(65) | 35 | Manual | Single Ram | 4 1/4”-6SA | |
| 3 | 2FZ6-35 | 62(65) | 35 | Hydraulic | Double Ram | 4 1/4”-6SA | |
| 4 | 2FZ6-70 | 62(65) | 70 | Hydraulic | Double Ram | 4 3/4”-4ACME | |
| 5 | 3FZ6-70 | 62(65) | 70 | Hydraulic | Triple Ram | 4 3/4”-4ACME | |
| 6 | SFZ7-35 | 76(78) | 35 | Manual | Single Ram | 5”-4ACME or EUE 8rd |
|
| 7 | 2FZ7-35 | 76(78) | 70 | Hydraulic | Double Ram | 5”-5ACME | |
| 8 | 2FZ7-70 | 76(78) | 70 | Hydraulic | Triple Ram | 5 3/4”-4ACME | |
| 9 | 3FZ7-70 | 76(78) | 70 | Hydraulic | Triple Ram | 5 3/4”-4ACME | |
| 10 | 3FZ7-105 | 76(78) | 105 | Hydraulic | Triple Ram | 7”-5ACME | |
| 11 | 2FZ8-35 | 89 | 35 | Hydraulic | Double Ram | 6”-4ACME | |
| 12 | 2FZ10-35 | 102(103) | 35 | Hydraulic | Double Ram | 7”-5ACME | |
| 13 | 2FZ10-70 | 102(103) | 70 | Hydraulic | Double Ram | 8 3/8”-4ACME | |
| 14 | 3FZ10-105 | 102(103) | 105 | Hydraulic | Triple Ram | 9 1/2”-4ACME | |
About ZZ TOP- Techore Oil Tools
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
Techcore Oil Tools has committed to the design of downhole tools for more than ten years.With the professional Research and Development (R&D) department and skilled engineers, Techcore improves the advanced technology in design and manufacture of the downhole oil tools .
ZZ TOP Oil Tools can also support client with One-Stop Procurement Service and flexible payment term under short or long term financing service. We always believe that the success of our company is directly related to our strict quality control and professional service. From the raw material booking till finished products, the inspector will be appointed to supervise the whole processing. We always provide clients with innovative solutions, quality materials and timely delivery.
Welcome to contact us for more information.
