Product Details:
|
| Application: | Wellhead Pressure Control Equipment | Product: | WPCE Lubricator |
|---|---|---|---|
| Working Pressure: | 10000psi | Service: | Standard Oil Well Condition |
| Standard: | NACE MR0175 & API 6A | Usage: | Wireline Pressure Control |
| Connection: | Quickly Union | Material: | Alloy Steel |
| High Light: | Lightweight Industrial Lubricators,Industrial Lubricators 10000psi,Quick Union WPCE Industrial Lubricators |
||

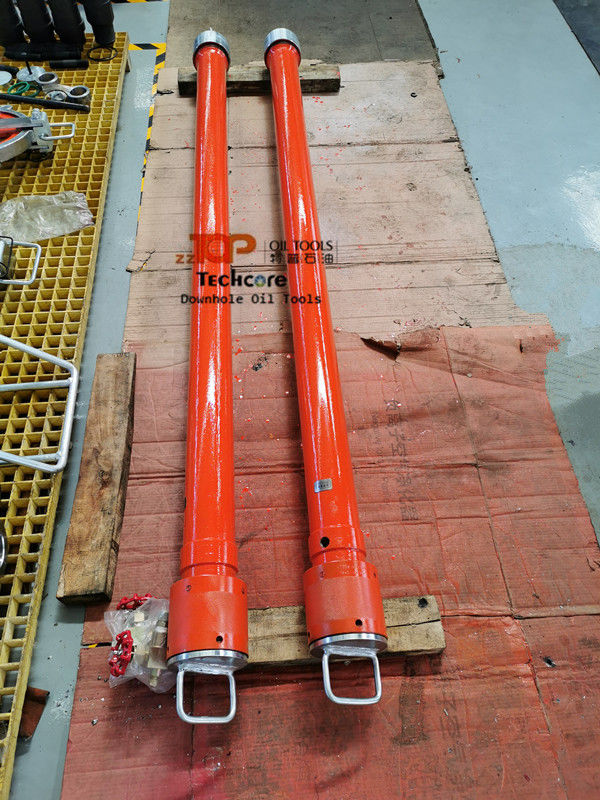

WPCE Lightweight Lubricators 10000psi Quick Union Connection
The integral lubricator is used in oil & gas well wireline / slickline operation. The Lubricator is the component of wellhead pressure control equipment with quick union and can stand high pressure. The Lubricator enable the wireline tool string to be introduced or retrieved from a well bore under pressure. The lubricator can be used singly also can use multiply according to the requirement of the oilfield operation,but the seal control head always be assembled on the top of the lubricator. Titanium alloy Lubricator is much better quality and lightweight than normal steel materials. The single length of lubricator is 0.8m - 3m, the number of lubricator and total length could be decided by operation.
Specification of Integral Lubricator
| Model | ID/mm | Connection | Working pressure | Cable Size/mm | Working condition |
| FPG6-35 | 62 | 4 1/4”-6SA | 5000 psi | Dia 1.8 - Dia3.2 | Crude oil, water, natural gas with H2S and CO2 |
| FPG7-35 | 76 | 5”-4ACME | |||
| FPG10-35 | 103 | 7 3/4”-5ACME | |||
| FPG6-70 | 62 | 4 3/4”-4ACME | 10000psi | ||
| FPG7-70 | 76 | 5 3/4”4ACME | |||
| FPG10-70 | 103 | 8 3/8”-4ACME | |||
| FPG7-105 | 76 | 7 3/4”-4ACME | 15000psi | ||
| FPG10-105 | 103 | 9 1/2”-4ACME | |||
| FPG6-70T | 62 | 4 3/4”-4ACME | 10000psi | ||
| FPG7-70T | 73 | 5 3/4”-4ACME | |||
| FPG10-70T | 103 | 8 3/8”-4ACME |
About ZZ TOP Oil Tools
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
* "JC Wellhead" was estabilished in 2010 in Yancheng city, specialized in design and manufacturing of the oilfield wellhead equipment conformed with API 6A specification.
* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
