Product Details:
|
| Material: | Carbon Steel | Application: | Drill Stem Testing Tools Pressure Test |
|---|---|---|---|
| Test Medium:: | Nitrogen | Brand: | MAXIMATOR Germany |
| Type: | Nitrogen Pump | Name: | Nitrogen Pump System Booster Station |
| High Light: | well testing tools,oil well drilling tools,dst drill stem test |
||
Nitrogen Pump System for Oil Well Drill Stem Testing Tools Pressure Test

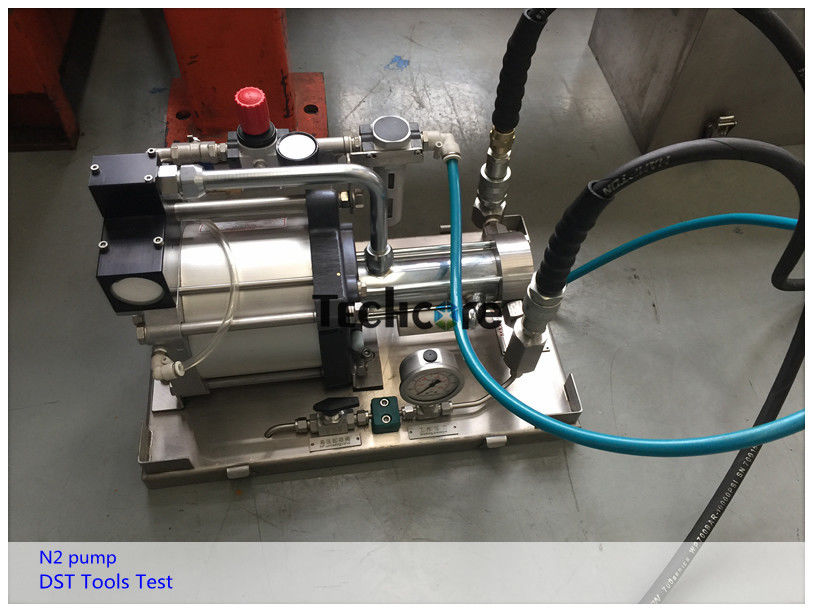

Introduction of Nitrogen Pump System

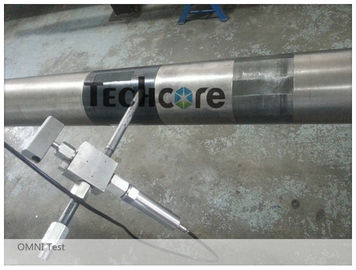

The Nitrogen Pump System is the test pump to take the high pressure test and function test for Drill stem testing tools in factory or at oifiled well site before the DST tools running in the hole for the oil well testing operation.
Operation of the Nitrogen Pump System
* Open the drive air stop valve of the nitrogen pump, please make sure that the gas inlet stop valve is opened before opening the drive air stop
* The gas booster starts pressurization and pressure inside the high pressure loop keeps increasing. Observe the output pressure value of the high pressure loop through the pressure gauge at the high pressure loop.
* Change the drive loop working pressure value via adjusting the drive air relief valve, so that different high pressure output could be achieved to meet different high pressure output coulbe be achieved to meet different test and production needs.
Technical Parameter of Nitrogen Pump System
| 1 | Type of equipment: | MGU75-1-DC-BJ |
| 2 | Type of origin of gas Booster: | DLE 75-1-GG, MAXIMATOR Germany |
| 3 | Test Medium: | Nitrogen gas |
| 4 | Pressure Ratio: | 1:75 |
| 5 | Max. allowable output pressure: | 400bar |
| 6 | Calculation formula of output pressure: | 75* drive air pressure |
| 7 | Max.air consumption: | 1800Ln/min |
| 8 | Weight of the equipment: | 15kgs |
| 9 | Dimension | 480x300x310mm |
About Techcore Oil Tools
Techcore Oil Tools expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.
Strict quality control system
Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Continuous after sales service
Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.
Welcome to contact us for more information!
