Product Details:
|
| Usage: | Select Tester Valve Component | Application: | Oil Well Drill Stem Testing |
|---|---|---|---|
| Material: | Alloy Steel | Tool Size: | 5 Inch |
| Standard: | NACE MR0175 | Working Condition: | Full H2S Service |
| Working Pressure: | 15000 Psi | Connection: | IF Box X Pin & CAS Box X Pin |
| High Light: | downhole valve,pressure safety valve |
||
Select Tester Valve Ball Valve Section Downhole Tester Valve Component
Introduction of Ball valve section
The select tester valve is a downhole tester valve for the drill stem testing operation. The select tester valve is composed of four basic sections; ball valve section, upper hydraulic section, nitrogen section and the metering section.The ball valve section contains the ball valve and the mechanism that rotates the ball when the tool is activated; the ball is rotated to the open position allowing the reservoir to flow into the testing
string. The ball valve is made from the Innconel alloy steel which can be serve in Full H2S service.
Specification of the Select tester valve
| NO. | Specification | 5” |
| 1 | OD | 5”(127mm) |
| 2 | ID | 2.25”(57mm) |
| 3 | Length(mm) | 288.2”(7319.5mm) |
| 4 | Working pressure | 15000 PSI(105Mpa) |
| 5 | Maximum open pressure differential | 5000PSI(35Mpa) |
| 6 | Tensile strength(Yield) | 2020.5kN |
| 7 | Internal Pressure Strength | 151Mpa |
| 8 | External Pressure Strength | 141Mpa |
| 9 | Torque strength | 30.9kN.m |
| 10 | Service Environment | Mud, crude oil, natural gas with H2S, Apply to NACE MR0175-2003 |
| 11 | End connection | 3 7/8CAS. BXP, 3 1/2 IF BXP |
| 12 | Service temperature | -20oF~400oF |

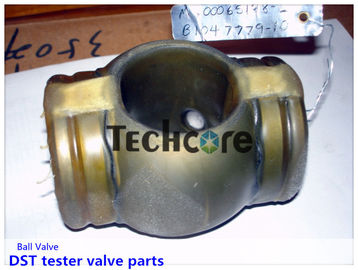

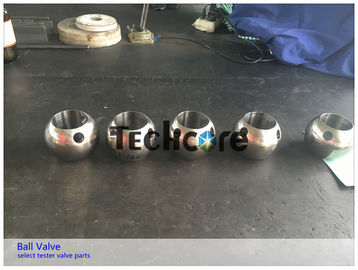

Ball Valve Section
Select tester valve - Ball Valve Test Chart
Techcore Service
