Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel

Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel
Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel

Large Image :  Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel

Product Details:
Place of Origin: China
Brand Name: TECHCORE
Certification: ISO, BV
Model Number: LPR-N 5100006
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 10 SET/MONTH

Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel

Description
Type: APR Tools Usage: Cased Hole Drill Stem Testing
Standard: NACE MR 0175 Tool Size: 5 Inch
Connection: EUE Box X Pin Working Condition: H2S Above 175oF
Material: AISI Alloy Steel Working Pressure: 10000 Psi
High Light:

down hole test

,

pressure safety valve

Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel



Brief of LPR-N Valve

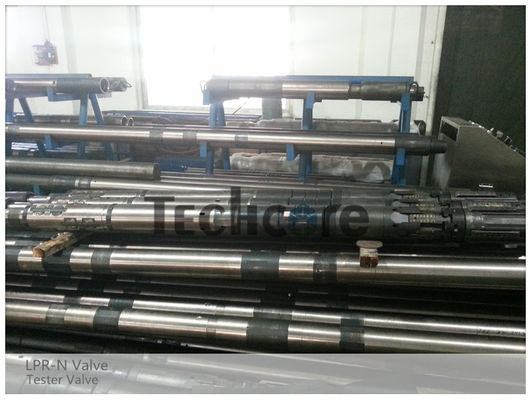

The LPR - N Valve is the tester valve with a full bore feature, the LPR -N valve is annulus pressure-operated valve. The LPR-N Valve is used in cased holes to measure multiple closed-in pressures  where pipe manipulation is restricted and a full-opening string is required. The nitrogen chamber of the LPR-N valve is charged at the surface to a selected pressure determined by surface temperature,bottomhole temperature, and bottomhole pressure. It is served as the master tester valve in drill stem testing operation.



Structure of the LPR-N Valve



Tester valve consists of Ball valve section, Power section and Metering Section.



* Ball valve section



The ball valve section contains the ball valve and related mechanical components that rotate the ball.
When the tool is activated, the ball is rotated to the open position, allowing the reservoir to flow into the
test string



* Power/nitrogen section



The power/nitrogen section contains the shear pins, operating piston, and nitrogen chamber. In the power
section, one side of the piston is exposed to annulus pressure, and the other is exposed to pressurized
nitrogen, which acts as a large gaseous spring.



* Metering section



The metering section of the LPR- N Valve is isolated from the annulus fluid by an oil and floating piston barrier to control the rate of pressure change.





Specification of LPR-N Valve



Specifications 5"
OD 127.5mm
ID 57mm
Length 4940mm(3 1/2"IF BXP)
Working Pressure 105Mpa
Diff. pressure over ball valve 70Mpa
Diff. pressure to Ball valve open 35Mpa
Internal Yield Pressure strength 140Mpa
External Yield Pressure strength 130Mpa
Tensile Strength(Yield) 1947KN
Torque Strength 61KN.m
Service environment Mud, Crude Oil, Natural gas NACE MR0175(>175F)
Service temperature --29oC~+204oC
End connections 3 7/8 CAS, 3 1/2" IF



Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel 0

About Techcore Oil Tools



Techcore Oil Tools has the professional Reserch and Development (R&D) department with skilled engineers whom were committed to the design of downhole tools for more than ten years and Techcore is equiped with advance equipments to manufacture the oil downhole tools and its related parts in high quality.



Cased Hole Drill Stem Downhole Valve High Pressure Tester Valve AISI Alloy Steel 1

The drill stem testing tools are applied in cased hole, open hole and slim hole, the main DST tool string includes RTTS packer, circulating valve, safety joint, select tester valve, omni valve, hydraulic jar, shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, IPO valve, tubing string test valve, and so on.



Welcome to contact us for more information about our tools and service!
