5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing

5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing
5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing 5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing

Large Image :  5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing

Product Details:
Place of Origin: China
Brand Name: TECHCORE
Certification: ISO, BV
Model Number: RDS510004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 10 SET/MONTH

5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing

Description
Application: Cased Hole Drill Stem Testing Tool Size: 5 Inch
Working Pressure: 15000 Psi Standard: NACE MR 0175
Connection: 3 7/8 CAS. BXP Working Condition: H2S Above 175oF
Material: AISI Alloy Steel Package: Polywood Case
High Light:

dst drill stem test

,

oil well drilling tools

5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing

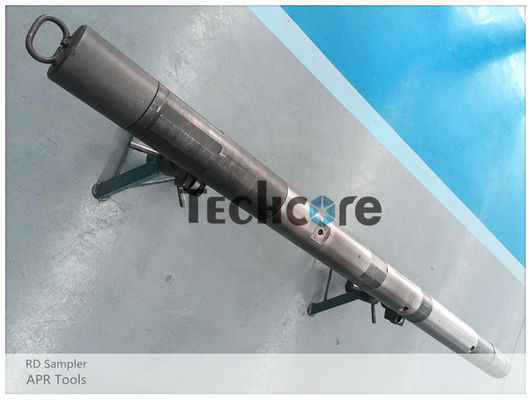

Introduction of the Rupture Disk Sampler



The rupture disk sampler is designed with full bore used for ful-flo drill stem testing operation. The full bore sleeve sampler for use on drill stem tests. The sleeve type RD sampler is operated by annulus pressure, which controll a rupture disk.



Features of Rupture Disck Sampler



* The rupture disks are high precise which is controlled by annulus pressure.

* The sleeve type RD sampler is designed with time-delay feature which allows the sample to be

   trapped after a preset time.

* During one test, the RD sampleer allow several samplers at different times.



Technical parameter of Rupture Disck Sampler



No Specification 5”
1 O.D. 127.5mm
2 Bore Diameter 57mm
3 Length 2198mm
4 Working pressure 105Mpa
5 Sampling chamber volume 1200cc
6 Service H2S,NACE MR0175 (>175oF)
7 Working temperature -29oC~+204oC
8 Connection thread 3 7/8CAS. BXP or 3 1/2 IF.BXP



Application of Sleeve type ful flo RD sampler



* Made of AISI alloy steel, the RD sampler is used for cased hole standard well testing operation
* Made of Inconel, the RD sampler is used for Full H2S cased hole downhole testing operation.
* Oil Well Production Testing
* Perforating combinated with drill stem tests

5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing 0



Techcore Oil Tools expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.



Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.



We approach every client’s enquiry with meticulous attention to technical specifications, and a high level of appreciation for their urgency.



5" 15000 PSI Cased Hole DST Tool Rupture Disk Sampler Drill Stem Testing 1



The drill stem testing tools are applied in cased hole operation, open hole testing operation and slim hole testing operation, the main DST tool string includes full bore retrievable packer,full bore retrievable circulating valve,full bore retrievable safety joint, select tester valve, omni valve, multi cycle circulating vlave, hydraulic jar, shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, IPO valve, tubing string test valve, and so on.
