Product Details:
|
Material: | AISI 4140 Alloy Steel | Working Pressure: | 10000psi / 70Mpa |
---|---|---|---|
Tool Size: | 7" | Standard: | NACE MR0175 |
Connection: | CAS. BXP; IF BXP | Working Condition: | H2S Above 175oF |
Application: | Drill Stem Testing Tools, Well Completion, Squeezing Operation | Type: | APR Tools |
Highlight: | well packer,open hole packer |

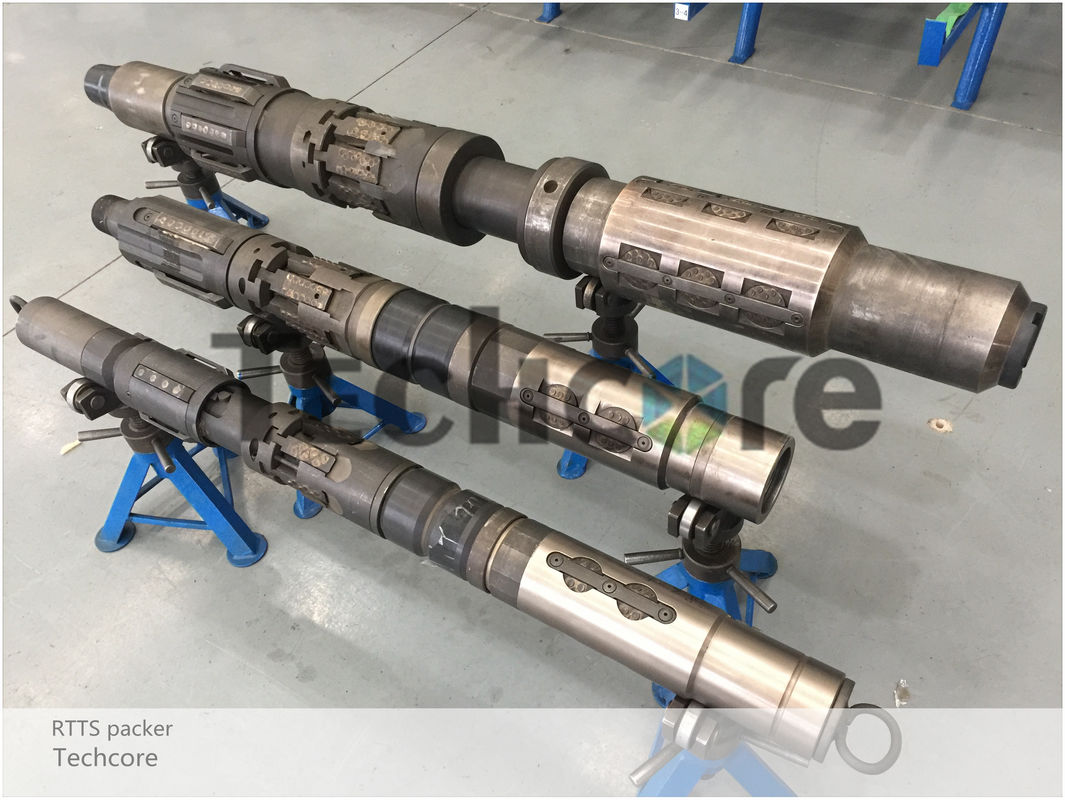

Full Bore DST Retrievable RTTS Packer Well Testing Hydraulic Set Packer
Introduction of RTTS packer
The RTTS Packer with full opening is a hookwall type packer. The feature of full opening permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun, which helps make the tool usable for multiple operations with one trip in the hole-such as perforate, test, treat, squeeze, perforate, etc.
Generally, the tool string is composed of a packer body assembly and circulating valve assembly ,also it may includes a safety joint.
Features and Benefits
• The full-opening design of the RTTS packer allows large volumes of fluid to pump through the tool.
Tubing-type guns and wireline tools can be run through the packer.
• The packer can be set and relocated as many times as necessary with simple tubing manipulation.
• Tungsten carbide slips provide greater holding ability and improved wear resistance in high-strength casing.
* Halliburton type
Application of the RTTS packer
Using in casing sizes from 4“ up to 13-3/8” and several models from low pressure sweet service to high pressure high temperature hostile environment H2S and CO2 Service Packers.
* Well Testing DST operations
* Oil & Gas well treating work
* Well Squeeze cementing operations.
Technical Parameter of RTTS packer
No | Specifications | 7" | |||
1 | Casing Weight Range(lb/ft) | 7" 17-26lb/ft | 7" 23-29lb/ft | 7" 32-38lb/ft | 6-5/8" 17-20lb/ft |
2 | Packer Ring OD | 151.1mm | 144.8mm | 142.7mm | |
3 | Top Shoe OD | 152.4mm | 146.1mm | 143.5mm | |
4 | Min. ID of tool | 61mm | |||
5 | Length | 1380,1611,1598,1473,1554mm | |||
6 | Pressure differential across the pacing ring | 70MPa | |||
7 |
Internal Yield Pressure strength (Bursting pressure) |
98.5MPa | |||
8 |
External Yield Pressure strength (Collapse Pressure) |
92MPa | |||
9 | Tensile Strength(Yield) | 805.3KN | |||
10 | Torque Strength | 14.5KN·m | |||
11 | Service environment | Mud, Crude Oil, Natural gas with H2S and acid | |||
12 | Service temperature | --29oC~+204oC | |||
13 | End connections |
4 5/32-8UN.BX 2 7/8 TBG.P 3 7/8 CAS.BXP 3 1/2IF.BXP 3 7/8 CAS.B X 2 7/8 UP TBG.P 4 5/32-8UN.B X 3 7/8 CAS.P |
