4 1/2" Squeeze Packer and Bridge Plug with 10000 PSI Rating for H2S Service in Well Completion

Large Image : 4 1/2" Squeeze Packer and Bridge Plug with 10000 PSI Rating for H2S Service in Well Completion

Product Details:

Place of Origin:	CHINA
Brand Name:	Techcore
Certification:	ISO, BV, SGS
Model Number:	Squeeze Packer / Bridge Plug

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Polly wood, suitable for sea and air shipment
Delivery Time:	30-45 days
Supply Ability:	50sets/month

Contact Now

4 1/2" Squeeze Packer and Bridge Plug with 10000 PSI Rating for H2S Service in Well Completion

Description

Type:	Squeeze Packer / Bridge Plug	Operated Type:	Annular Pressure
Working Pressure:	10000 PSI	Working Condition:	H2S Service Above 175oF
Application:	Oil Well Testing & Completion Operation	Standard:	NACE MR0175
Casing Size:	4 1/2" - 13 5/8"	Material:	Alloy Steel / Inconnel
Product Name:	SVB Squeeze Packer	Packing:	EXPORT PACKING
Warranty:	1 Year	Advantage:	Competitive Price & Good Quality
Highlight:	10000psi Squeeze Packers , Bridge Plug Squeeze Packers , Well Completion Squeeze Packers

Squeeze Packers / EZ Bridge Plug / Cement Retainer 4 1/2" X 10000psi For Well Completion

Retrievable Packer Selection Criteria For Well Completion Design

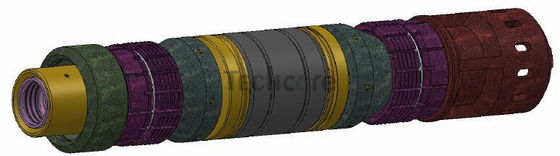

SVB Squeeze Packers are high-temperature/high-pressure sliding-valve cement retainers designed for remedial cementing operations. Constructed from cast iron, brass, aluminum, and rubber, these packers offer exceptional drillability. They can be set using electric wireline, slickline, coiled tubing, or jointed pipe with either mechanical or hydraulic setting tools.

Features and Benefits

Controls flow and pressure differential in either direction
Allows pressure testing of workstring
Runs in quickly
Sets in a wide range of casing grades
Features rugged brass mandrel, improved slips, and enhanced sliding valve seals

SVB Squeeze Packer Specifications

Applicable Casing Size	4 1/2" 9.5-13.5# 4 3/4" 16# 5" 20.3-24.2# 5 1/2" 36.4#
Max. Casing ID	106.2mm
Min. Casing ID	99.3mm
Max. OD	93.0mm
Min. ID	22.1mm
Length	638mm
Max. Differential Pressure	10000psi
External Pressure Strength	98Mpa
Internal Pressure Strength	89Mpa
Working Temperature	-29°C to 120°C

About ZZ TOP Oil Tools

ZZ TOP Oil Tools Co., Ltd, headquartered in Xi'an City, specializes in the design and production of drill stem testing tools and wellhead equipment since 2010. With expanding business operations, ZZ TOP Oil Tools has established factories for wellhead equipment under the "JC Wellhead" brand and downhole tools under the "Techcore" brand.

ZZ TOP Oil Tools provides comprehensive One-Stop Procurement Services with flexible payment terms through short or long-term financing solutions. Our success is built on strict quality control and professional service, with dedicated inspectors supervising the entire manufacturing process from raw materials to finished products. We deliver innovative solutions, quality materials, and timely delivery to our clients.

Drill Stem Testing Tools Portfolio

Full bore retrievable packer: RTTS packer, mechanical setting retrievable packer, Double grip mechanical setting retrievable packer, Single grip mechanical setting retrievable packer, CHAMP packer, High pressure retrievable packer, high pressure retrievable packer with bypass
Downhole Tester Valve: Select tester valve, LPR N Tester valve, tubing string test valve
Circulating valve: full bore retrievable circulating valve, multi-cycle circulating valve, omni valve, RD safety circulating valve, IPO valve, RTTS Circulating valve, Hydraulic circulating valve
Shock Absorber: Vertical shock absorber, Radial shock absorber
Safety valve: RTTS safety valve, Super Safety valve, BOP safety valve

Welcome to contact us for more information about our tools and services!
