Product Details:
|
Application: | Oil & Gas Well Testing Service | Operation Type: | APR Tools |
---|---|---|---|
Working Pressure: | 15000 Psi | Tool Size: | 7 Inch |
Connection: | 3 1/2 IF Box X Pin | Working Condition: | H2S Above 175oF |
Material: | AISI Alloy Steel | Package: | Polywood Case |
Product: | CHAMP Packer / Retrievable Packer | Usage: | Drill Stem Testing |
High Light: | Drill Stem Testing CHAMP Packer,Internal Pass Retrievable Production Packer,DST Tools Completion Packer |

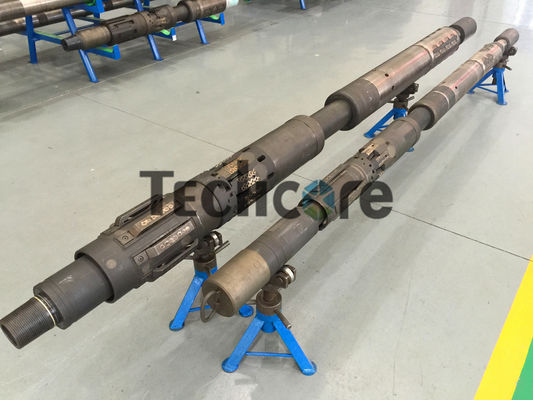

DST Tools CHAMP Packer With Internal By Pass Retrievable Packer For Drill Stem Testing
The CHAMP packer is a etrievable packer with a concentric bypass. The CHAMP packer is constructed with higher grade materials,

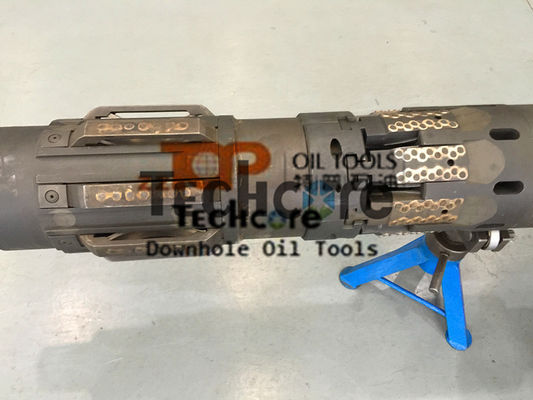

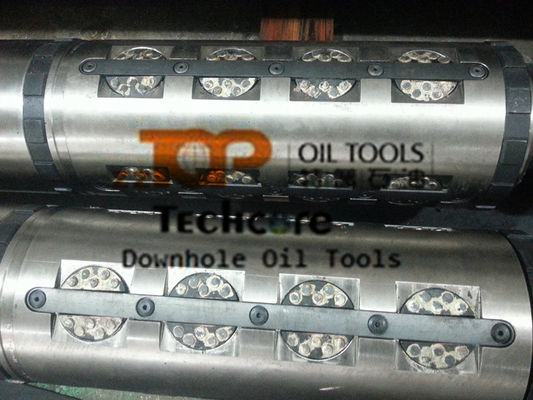

and all elastomers are supported with backup rings. The CHAMP Packer consist of a J-slot mechanism, mechanical slips, packer elements, hydraulic slips, and a bypass. Round, piston-like slips used in the hydraulic hold down mechanism prevent the tool from being pumped up the hole. The J-slot enables the packer to be run in the casing, set, and unset without applying any rotation to the workstring. The packer can cycle from the run-in-hole position to the set and pull-out-of-hole positions simply by lifting or lowering the drillpipe or tubing in the wellbore.
The bypass allows fluids to pass around the bottom of the tool when it is removed from the hole. This design eliminates accidentally opening a conventional bypass during circulation around the bottom of the packer
Specification of Drill Stem Testing Tools - CHAMP Packer
Casing Size in. | Packer OD in | Packer ID in. |
Nom.Casing Weight lb/ft |
Min. Casing ID in. | Max.Casing ID in. |
Length in. |
Tensile Rating *lb |
Temp. Rating F° |
Work-ing Pres-sure *psi |
7 | 5.75 | 2 | 29-35 | 6.004 | 6.184 | 163.84 | 150,000 | 400 | 15,000 |
75/8 | 6.62 | 2.25 | 29.7-39 | 6.625 | 6.875 | 163.54 | 150,000 | 400 | 15,000 |
95/8 | 8.165 | 3 | 47-61.1 | 8.231 | 8.681 | 174.66 | 340,000 | 400 | 15,000 |
97/8 | 8.165 | 3 | 62.8 | 8.480 | 8.632 | 174.66 | 340,000 | 400 | 15,000 |
About ZZ TOP Oil Tools
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
ZZ TOP Oil Tools can also support client with One-Stop Procurement Service and flexible payment term under short or long term financing service. We always believe that the success of our company is directly related to our strict quality control and professional service. From the raw material booking till finished products, the inspector will be appointed to supervise the whole processing. We always provide clients with innovative solutions, quality materials and timely delivery.
Drill stem testing tools for cased hole, open hole and slim hole:
* Full bore retrievable packer: RTTS packer, mechanical setting retrievable packer, Double grip mechanical setting retrievable packer, Single grip mechanical setting retrevable packer, CHAMP packer, High pressure retrievable packer, high pressure retrievable packer with bypass
* Downhole Tester Valve: Select tester valve, LPR N Tester valve, tubing string test valve
* Circulating valve: full bore retrievable circulating valve, multi-cycle circulating valve, omni valve, RD safety circulating valve, IPO valve, RTTS Circulaitng valve, Hydraulic circulating valve
* Shock Absorber: Vertical shock absorber, Radial shock absorber
* Safety valve: RTTS safety valve, Super Safety valve, BOP safety valve
