Product Details:
|
| Application: | Coiled Tubing Cleaning Operation | Operating Pressure: | 5000 Psi |
|---|---|---|---|
| Tool Size: | 1 1/2 Inch To 2 7/8 Inch | Connection: | AMMT Pin X Box |
| Standard: | NACE MR0175 | Working Condition: | Standard |
| Material: | Alloy Steel | Type: | Rotary Jet Wash Tools |
| Processing Type: | Forging | Condition: | New |
| Product Name: | Coiled Tubing Washover Tools | ||
| Highlight: | coiled tubing downhole tools,thru tubing tools |
||

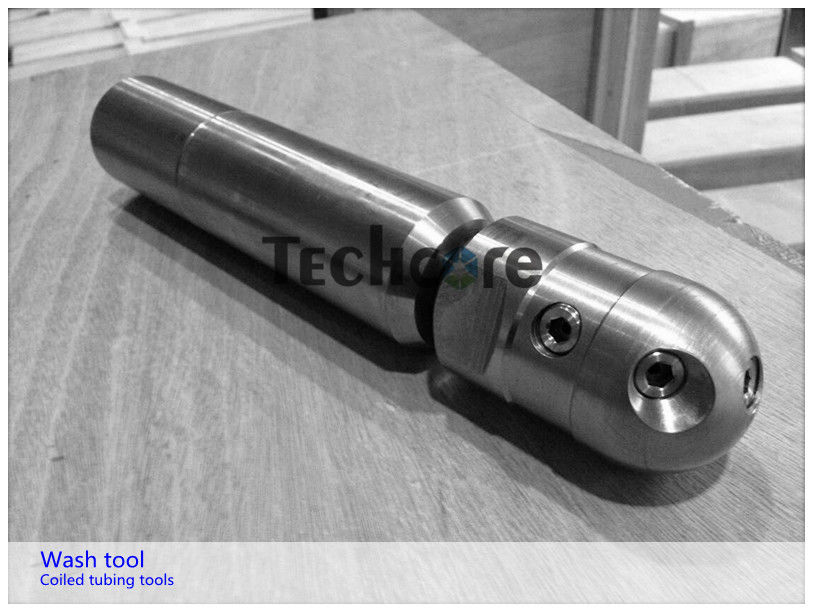

Rotary Jet Wash Tool downhole Coiled Tubing Toolstring Component
Introduction of Rotary Jet Wash Tools
The Rotary Jet Wash Tools is a kind of coiled tubing washover tools, which is applied for the coiled tubing cleaning operation. The rotary jet wash tool is mainly composed of an upper joint, a rod body, a porous cleaning head,a thrust bearing etc. This wash tool can be rotated to clean the paraffin,rust, sediment and other debris attached to the wall to wash the tube. After applying the pressure, the wall is automatically rotated by the hydraulic force.
Features of Rotary Jet Wash Tools
* The rotary jet wash tool is operated by the fluid pressure,
* The nozzle of the wahs tool can be rotated and jet the fluid against the tubing wall in a full 360o rotating action.
* The rotary jet wash tools are available in a range of sizes.
* The coiled tubing wash tools is made from corrosion-resistant alloy, which can serve in Sour working condiction
Technical parameter of Rotary Jet Wash Tools
| OD/in | Nozzle / mm | Connection |
| 1.500 |
3.2x2@90o+ 3.2x2@45o+3.2 |
1" AMMT |
| 1.750 | 3.2x2@90o+ 3.2x2@45o+3.2 | 1" AMMT |
| 2.125 | 3.2x4@90o+ 3.2x4@45o+6.35 | 1 1/2" AMMT |
| 2.875 | 3.2x4@90o+ 3.2x4@45o+6.35 | 2 3/8" PAC |
Service of Techcore Oil Tools
Techcore Oil Tools expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Strict quality control system
Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Continuous after sales service
Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.
Welcome to contact us to learn more information about coiled tubing tools!!Over-rotate the paraffin, rust, sediment and other debris attached to the wall of the washing tube. After pressing, the wall is automatically rotated by the hydraulic force
