Product Details:
|
| Type: | Coiled Tubing Tools | Working Pressure: | 10000 Psi |
|---|---|---|---|
| Coiled Tubing Size: | 1 11/16" To 2 7/8" | Connection: | AMMT Pin X Box |
| Standard: | NACE MR0175 | Working Condition: | H2S Operation |
| Material: | Alloy Steel | Usage: | Oil Well Coiled Tubing Service |
| Processing Type: | Forging | Condition: | New |
| Product Name: | Coiled Tubing Motorheas Assy. | ||
| Highlight: | MHA Motorhead Assembly MHA,Coiled Tubing Service Motorhead Assembly,High Pressure Motorhead Assembly |
||
Motorhead Assembly (MHA) For Coiled Tubing Service in High Pressure
Motor head assembly is a compact coiled tubing assembly. The motorhead assembly is composed of dual flapper check valve and heavy-duty hydraulic disconnect and dual activated circulation sub., easy for directly usage on well spot.
The Motorhead Assembly has been developed in recognition to industry demands for compact, heavy duty, integrated BHA components. The combined tool length has been greatly reduced to allow ease of handling, aid deployment in the well and effectively reduce bending stresses in the Bottom Hole Assembly (BHA).
Features of CT Motorhead assembly
* The Motorhead Assembly compact design gives an overall length saving.
* The Max. working pressure of the motorhead assy. is reach to 10000psi.
* Easy and fast connection at the well site
* The choice of tubing connector is not dictated by the motorhead assy, giving the operator the flexibility to choose.
* The MHA shorten the length of the tool string. With a considerable reduction in the number of component parts, seals and thread connections, the Motorhead Assembly is uncomplicated to assemble/disassemble and inexpensive to redress.
Technical parameter of CT Motorhead assembly / MHA
| Tool Size(in) | 1.688 | 1.750 | 2.125 | 2.875 |
| End Connection | 1"AM MT | 1-1/4"AM MT | 1-1/2"AM MT | 2-3/8"PAC |
| Tensile Strength(bs) | 33,860 | 47,000 | 62,000 | 120,300 |
| ID(in) | 0.406 | 0.406 | 0.563 | 0.688 |
| Length(ft) | 2.30 | 2.21 | 2.38 | 2.73 |
| Fish Neck Size | 1-1/2"GS | 1-1/2"GS | 2"GS | 3"GS |
| Working Pressure(psi) | 10,000 | 10,000 | 10,000 | 10,000 |
About ZZ TOP Oil Tools
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.

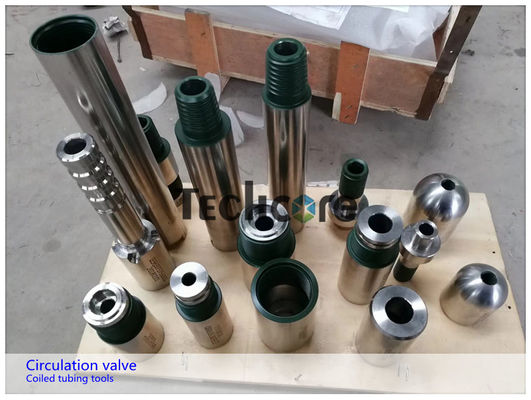

The Coiled Tubing tools we manufactured include Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.
