Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof

Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof
Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof

Large Image :  Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV,API
Model Number: SSSV505001
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 2000 sets/month

Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof

Description
Application: Well Completion Operation Working Pressure: 5000 Psi
Casing Size: 7" Connection: As Per The Customers' Requirement
Standard: API Working Condition: Standard Servcie
Material: Cast Iron Type: Drillable Bridge Plug
High Light:

downhole completion equipment

,

well completion equipment

Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof

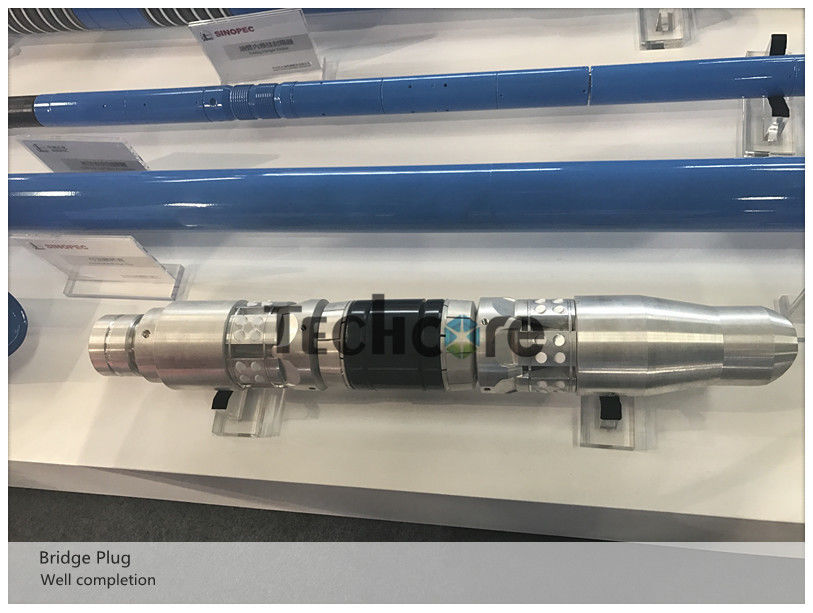

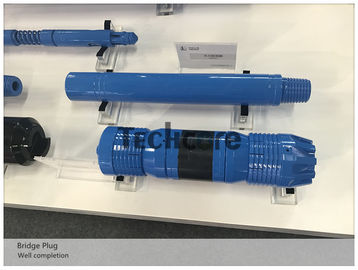

Introudction of  Drillable Bridge Plug



The drillable bridge plug is a kind of the bridge plug which is a subsurface tool sed in the oil and gas well completion operation. The drillable bridge plug can be sent into the well by the set tools which connects drill pipe for blocking in the bottom of well, and then bridge plug is set by pressure drill pipe. In addition, it can be also set in the way of the wireline set tool going down into the well and fire through the ground. The bridge plug is made of cast iron with good drillability.



Features of Drillable Bridge Plug


  • The drillable bridge plug is made of cast iron which has good drillability.
  • Matierals of elastomer include Nitrile, HNBR or AFLAS.
  • The drillable bridge plug can be used for bottom sealing or fracturing operation.
  • Working pressure of drillable bridge plug is up to 5000-10000psi



Specification of the Drillable Bridge Plug



Casing Normal size Casing weight/ lbs. OD / in(mm)
5 1/2 13-17 3.72(94.5)
7 23-26 6(152.4)
29-35 5.59(142)
7 5/8 29.7 6.5(165.1)
9 5/8 40-53.5 8.11(206)
29.3-36 8.45(214.7)



                                            Cast Iron Downhole Completion Tools Drillable Bridge Plug 7" Casing Rustproof 0















About Techcore Oil Tools



Techcore Oil Tools has committed to the design of downhole tools for more than ten years.With the professional Research and Development (R&D) department and skilled engineers, Techcore improves the advanced technology in design and manufacture of the downhole oil tools .



In order to meet different requirement of downhole operation, in recent years, we joint with other factory who have accumulated abundant experiences in design and development the well completion tools, to manufacture and supply the oil well downhole tools, so that Techcore can offer one-stop purchasing service of downhole operation tools in well testing, well perforation, well completion.



Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.



Welcome to contact us for more information about the downhole tools and our service!
