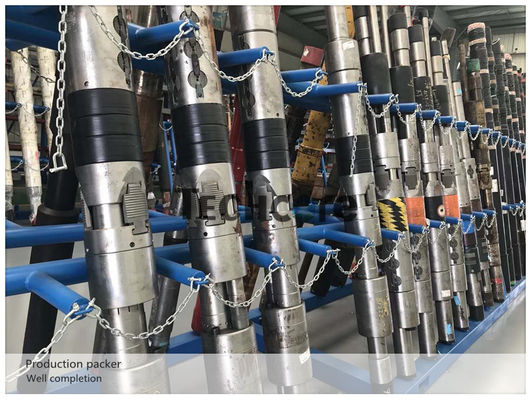

7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer

7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer
7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer 7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer

Large Image :  7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV,API
Model Number: HP 7100008
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 2000 sets/month

7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer

Description
Application: Well Completion Usage: Production Packer
Casing Size: 7" Working Pressure: 5000 Psi
Standard: API Working Condition: Standard Servcie
Material: AISI 4140 Type: Hydraulic Setting
High Light:

downhole completion tools

,

well completion equipment

7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer



Introudction of Hydraulic Setting Retrievable Packer



This kind of production packer is the retrievable packer with hydraulic setting, the packer purely rely on hydraulic setting,which can run one or multiple packers into the well. The Hydraulic Setting Retrievable Packer is particularly recommended for deviated well where conditions are not suitable for mechanical and wireline setting packers.No tubing movement when set the packer,this makes the well have been in good control state. Two or more packers can be set in one-time or set according to the design order. It is safe and easy for release operation,directly lifting the tubing to release packer and then take out of the string .



Features of Hydraulic Setting Retrievable Packer

  • The hydraulic setting retrievable packer can be set in any grade casing.
  • The hydraulic setting retrievable packer is specially suitable for deviated wells.
  • The hydraulic setting retrievable packer is set by pump pressure in tubing.
  • Lifting to release hydraulic setting retrievable packer.
  • Three piece packing element in multiple hardness to combine for a superior seal system.
  • The hydraulic setting retrievable packer can withstand both-way differential pressure.
  • Temperature grade:250°F, 300°F, 325°F, 400°F.



Specification of Hydraulic Setting Retrievable Packer



Specification
Casing OD. Casing Weight Max. OD Min. ID Connection Thread
in Lbs/ft in[mm] in[mm]
5 11.5-13 4.31[109.47] 1.94[49.28] 2 3/8” 8RD EU
15-18 4.12[104.65] 1.93[48.95]
18-21 3.91[99.31] 1.91[48.51]
5 1/2 13-17 4.62[117.35] 1.94[49.28] 2 7/8” 8RD EU
17-23 4.50[114.30]
7 17-23 6.19[157.23] 2.38[60.33]
23-29 5.88[149.23]
29-35 5.77[146.56] 2.34[59.44]
38-40 5.50[139.70] 2.38[60.33]
7 5/8 24-29.7 6.64[168.66] 2.91[73.91] 3 1/2” 8RD EU
29.7-39 6.40[162.56] 2.89[73.41]
9 5/8 40-47  8.38[212.85] 2.98[75.79]


7" Casing Oil Well Completion Tools Hydraulic Setting Retrievable Packer 0

About Techcore Oil Tools



In order to meet different requirement of downhole operation, in recent years, we joint with other factory who have accumulated abundant experiences in design and development the well completion tools, to manufacture and supply the oil well downhole tools, so that Techcore can offer one-stop purchasing service of downhole operation tools in well testing, well perforation, well completion.



Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
