Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material

Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material

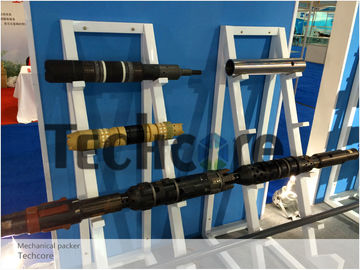

Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material

Large Image :  Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV,API
Model Number: CD31250008
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 2000 sets/month

Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material

Description
Application: Well Completion Usage: Adjusting Device
Casing Size: 3 1/2 " Working Pressure: 5000 Psi
Standard: API Working Condition: Standard Servcie
Material: AISI 4140 Type: Compensation Device
High Light:

downhole completion equipment

,

well completion equipment

Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material



Introudction of Compensation Device



Compensation Device is a string adjusting device used in the well completion, the compensation device is provided with sliding seal by the multiple sealing packings. Additionally, compensation device is equipped with many pins to connect upper and lower connectors assembly and connecting pulling force can be adjusted by the numbers of pins according to site’s requirement. The internal stress of the tubing will be changed due to temperature and pressure changes, then shear pins of central tube are cut and central tube released in order to compensate and adjust tubes string when stress of tubing reaches a certain value.



Features of Compensation Device

  • The compensation device is desinged with drift diameters matched with tubes.
  • The distance ranges of compensation is from 10ft to 20 ft.
  • Sealing packings’ materials use HNBR, PTFE or Viton.
  • Compensation Device  is expected to be used in drill stem test operation and production wells
  • Materials of comensation device main body include AISI 4140 or 4340
  • Working pressure of compensation device is 5000-10000psi



Specification of Compensation Device



  Tubing norms ID (in[mm]) OD (in[mm])
2 7/8 - 4 1/2 2 3/8 2.44[62] 4.5[114.3]
3 1/2 - 5 1/2 3 1/2 2.99[76] 5.5[139.7]
4 1/2 - 6 1/2 4 1/2 3.92[99.5] 6.5[165.1]
5 1/2 - 7 1/2 5 1/2 4.95[125.7] 7.5[190.5]





Anti Corrosion Downhole Completion Tools 3 1/2" 5000 PSI Alloy Steel Material 0

About Techcore Oil Tools



In order to meet different requirement of downhole operation, in recent years, we joint with other factory who have accumulated abundant experiences in design and development the well completion tools, to manufacture and supply the oil well downhole tools, so that Techcore can offer one-stop purchasing service of downhole operation tools in well testing, well perforation, well completion.



Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.



Welcome to contact us for more information!
