High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material

High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material
High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material

Large Image :  High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV
Model Number: HSP100011
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 5 set/month

High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material

Description
Type: High Pressure Perforating Gun Application: Oil Well Perforation
Gun Size: 3 3/8" Length: 15 Feet
Working Pressure: 15000 Psi Standard: API
Material: Alloy Steel Shot Density: 6 SPF
High Light:

perforated well casing

,

oil well fishing tools

High Pressure Oil Well Perforated Casing High Shot Density Alloy Steel Material



Introduction of High Pressure Perforating Guns



The high shot density perforator is a sort of the perforating gun used for the oil well perfatoraion. The high shot density perforating gun is quipped with recoverable but non-reused charge holder  and deep penetration charges with the shot density up to 40 SPM and phasing from 40° to135°and no any damage to casing. It can run in hole on wire line or tubing.



Specification of High Pressure Perforating Gun



No. Gun Size Length (ft) Shot Density (spm) Phasing Pressure (psi)
1 2 7/8” 10/20 ft 16 60°,90°

15000,

20000

2 2 7/8” 10/20 ft 20 60°,90°

15000,

20000

3 3 1/8” 2/3 ft 16 60°,90° 20000
4 3 1/8” 2/3 ft 20 60°,90° 20000
5 3 3/8” 2/3/10/20 ft 16 60°,90°

15000,

20000

6 3 3/8” 2/3/10/20 ft 20 60°,90°

15000,

20000

7 3 1/2” 10/20 ft 16 60°,90°

15000,

20000

8 3 1/2” 10/20 ft 20 60°,90°

15000,

20000

9 4” 10/20 ft 16 60°,90°

15000,

20000

10 4 1/2” 10/20 ft 16 60°,90°

15000,

20000

11 4 1/2” 10/20 ft 40 45°/135° 15000
12 5” 10/20 ft 40 45°/135° 15000
13 5” 10/20 ft 16 60°,90° 15000
14 7” 10/20 ft 40 45°/135° 15000
15 7” 10/20 ft 60 20°/140° 15000

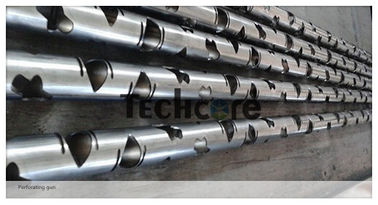

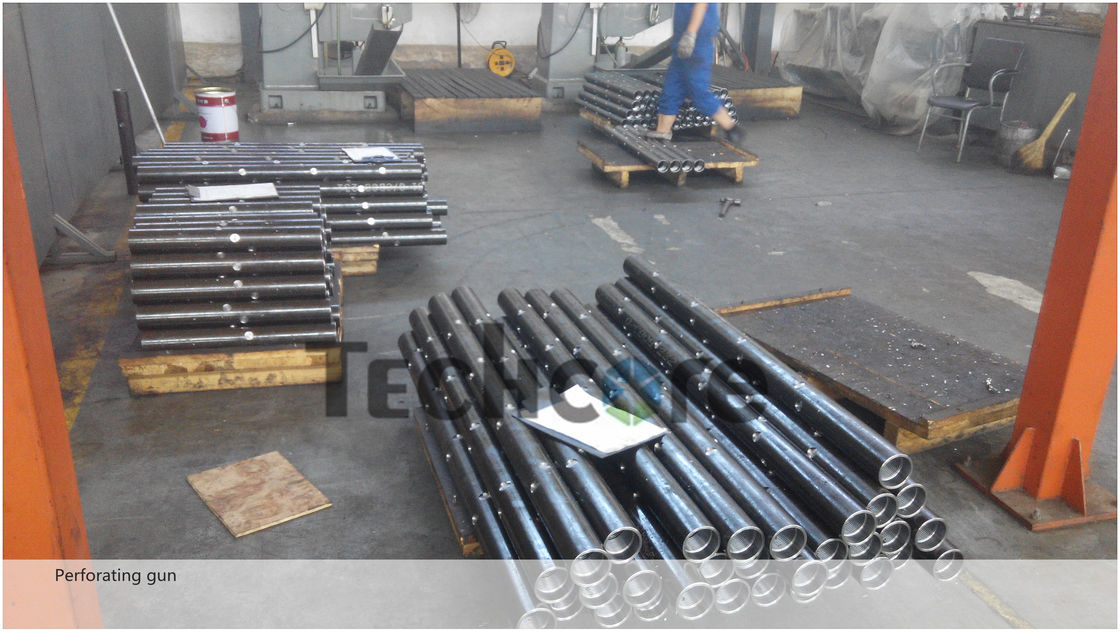

High Pressure Perforating Gun
