Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service

Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service
Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service

Large Image :  Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV, SGS
Model Number: OMNI 515010A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 50sets/month

Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service

Description
Tool Size: 5 Inch & 3 7/8 Inch Working Pressure: 15000 Psi
Material: Alloy Steel Connection: IF BxP
Standard: NACE MR0175 Working Condition: Full H2S Service
Application: Cased Hole & Slim Hole DST Service Operation: Annulus Pressure Operated
High Light:

omni circulating valve

,

circulation valve

Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service



Introudction of Multi Cycle Circulating Valve

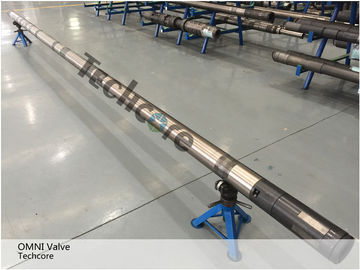

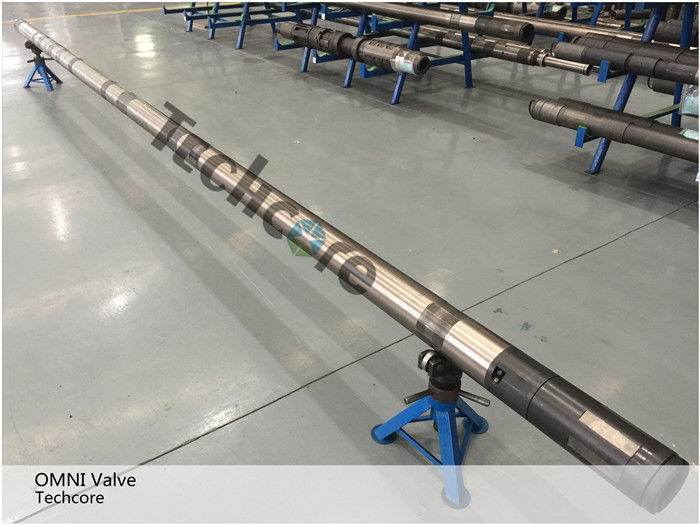

Multi Cycle Circulating Valve is the OMNI valve in Halliburton, it is a full bore and annulus pressure-operated re-closable circulating valve, the valve can be open and closed many times and operated by repeatedly cycling the annulus pressure. The OMNI Valve is acceptable for the formation testing in cased hole, oil tube tradition perforating tube string testing and cycle operation in the conjunction of perforation and full-opening formation testing.



Specification of Multi-cycle circulating valve



  Tool Size /in. OD /in. ID /in. Thread Connections Length /in. Working Pressure
Slim Hole 3 7/8 3.9 2 2 7/8 CAS 30.13 15000 psi
Cased Hole 5 5.03 2.28 3 7/8 CAS 41.28 15000 psi



TCP Operation Example of the Multi-cycle circulating valve



For the tubing conveyed perforating before finishing the test, the tool string comprises the TCP gun ,the packer,by-pass valve. Then you can connect the OMNI valve in the string. The valve can test the tubing by the annulus pressure and make sure the negative pressure for perforating. After the perforating, the oil and the gas begin to flow. When requiring killing well you can operate the valve repeatedly and make that the tool circulates the completion fluids in the circulating position; the oil and the gas flow in the test position, do so many times until the completion fluids is adjusted to a proper specific gravity to control the oil well. In the course of the killing well, the packer is always in the setting position, so using the valve can approve the security in the process of the killing well.



Alloy Steel Multi Cycle RD Circulating Valve TCP Operation In Downhole Service 0



Well Testing Multi Cycle Circulating Valve High Pressure Full H2S Service DST



Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.



* Techcore insist on superior quality, strong packing & timely delivery.

* Our stable quality and professional service has won us very good reputation from world clients

* Third party inspection is available from SGS, BV, DNV etc.

* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the

   customers' benefits

* Techcore supply the cost effect products with 12 months guarantee

* Techcore insist on the traceability of each Drill stem testing tools and related DST parts

   from the raw material to the finished products to meet on requirements of onshore and offshore

   standards.
