Product Details:
|
| Application: | Well Testing DST Tools | Type: | Full Opening Retrievable |
|---|---|---|---|
| Working Condition: | H2S Service Above 175oF | Working Temperature: | Max. To 450 OF |
| Working Pressure: | 10000psi | Standard: | NACE MR0175 |
| Tool Size: | 9 5/8" | Connection: | 3 1/2 IF. Box X Pin |
| High Light: | downhole completion tools,oil well tools |
||
10000 PSI Alloy Steel Well Testing Tools Cased Hole 9 5/8" Retrievable Safety Joint
Introudction of 9 5/8" Retrievable Safety Joint
The 9 5/8" Retrievable safety joint with 10000psi working pressure is a knd of retrievable DST tools for the well testing service. 9 5/8" Retrievable safety joint is similar with RTTS afety joint in Halliburton type.
During the drill stem testing operation, the 9 5/8" retrievable safety joint is an emergency backoff equipment, but it is the optional in dst tools string. If the packer becomes stuck during testing operations, the safety joint can release the workstring and tools above the packer.
Operation of the 9 5/8" retrievable safety joint
The 9 5/8" retrievable safety joint is run immediately above the RTTS packer so that the dst tools above the packer can be removed. The tension sleeve of the safety joint located on the bottom of the lug mandrel, it must first be parted by pulling up on the tool string.
Application of the 9 5/8" Retrievable Safety Joint
* High pressure high temperature cased hole drill stem testing Operation
* Tubing - converyed perforating operation - TCP operation
* Well Completion operations
Features and Benefits of the 9 5/8" Retrievable Safety Joint
* Positive sequence of operation helps prevent premature release.
* Full bore design of the retrievable safety joint allows the wireline equipment pass through.
* The DST tool string above the safety joint can be retrieved when string is stuck.
Technical parameter of the retrievable safety joint
| No. | Specification | 8 5/8-13 3/8” RTTS Safety Joint |
| 1 | OD | 155.5mm |
| 2 | ID | 79mm |
| 3 | Length | 1195.5mm(1205.5MM) |
| 4 | Working Pressure | 70MPa |
| 5 | Tension Strength | 2000KN |
| 6 | Service | H2S,As per NACE MR-0175(>175°F) |
| 7 | Tension sleeve Rating | 176+-10 kN |
| 8 | Working Temperature | -29℃～+204℃ |
| 9 | Top and bottom Connection | 3 1/2IF. BXP 4 1/2"IF. BXP |

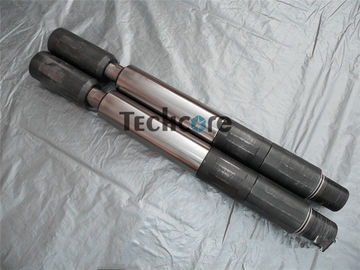

Well Testing Cased Hole 9 5/8" Retrievable Safety Joint 10000 psi Alloy steel

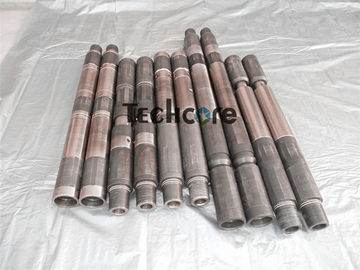

Tension Sleeve of Full Bore Retrievable Safety Joint
The drill stem testing tools are the APR tools and applied in cased hole, open hole and slim hole well testing service or TCP service. The main DST tool string includes RTTS packer, RTTS circulating valve, safety joint, select tester valve, omni valve, hydraulic jar, shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, IPO valve, tubing string test valve, gauge carrier, N- valve tester and so on.
