13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve

13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve
13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve 13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve

Large Image :  13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV,API
Model Number: SSSV505001
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 2000 sets/month

13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve

Description
Material: 13Cr Working Pressure: 5000 Psi / 35 MPa
Tool Size: 5 1/2 " Connection: NPT
Standard: API Working Condition: Standard Servcie
Application: Well Completion Operation Type: Downhoel Safety Valve
High Light:

downhole completion equipment

,

well completion equipment

13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve



Introudction of  Subsurface Safety Valve



The subsurface safety valve is a  safety valve controlled by tubing portable ground for low pressure condition that applied for the well completion operation. The subsurface safety valve is connected with ground by control line, when the safety valve is installed. By applying a ground pressure, the pressure passes through the control line and acts on the piston of safety valve, and the open or close of the safety valve is controlled by the pressure, the valve includes balanced and unbalanced types.





Features of well completion subsurface safety valve



1. The Subsurface safety valves are controlled by ground pressure to be Opened and closed.

2. There are two sorts of safety valve: balanced and unbalanced types.

3. The safety valve can be equipped with standard nipples and FNP Series Nipple.

4.  Main body’s materials of safety valve include 13Cr, 17-4H and Inconel.

5.  Working pressure is 5000 - 10000 psi, and working temperature is 160oC



Specification of the Subsurface safety valve



Tubing Norm OD/in ID/in Seal aperture/in Control line thread WP/psi Installing depth
2-7/8 5.0 2.37 2.312 NPT1/4 OR NPT 1/8

5000 psi

10000 psi

<400
3-1/2 5.7 2.87 2.812
4-1/2 7.7 3.87 3.812
5-1/2 8.375 4.625 4.562
7 8.35 4.5 4.562

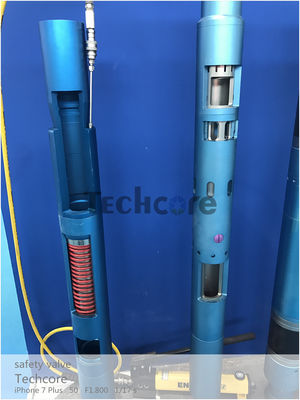

                     13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve 0                                                      13Cr Well Completion Equipment Surface Controlled Subsurface Safety Valve 1





 Subsurface Safety Valve for Well Completion Operation
