Product Details:
|
| Application: | Oil Well Wireline Weight Bar | Usage: | Wireline Operation |
|---|---|---|---|
| Wireline Tool Size: | 1.25" To 2.50" | Connection: | UN Thread |
| Standard: | NACE MR0175 | Working Condition: | Standard |
| Material: | Alloy Steel | Type: | Pear Drop Type |
| Product Name: | Sinker Bars | Wire Size: | 0.092" To 0.125" |
| High Light: | Wireline Stem Section Weight Bar,Oil Well Wireline Weight Bar,Oilfield Socket Type Sinker Bars |
||

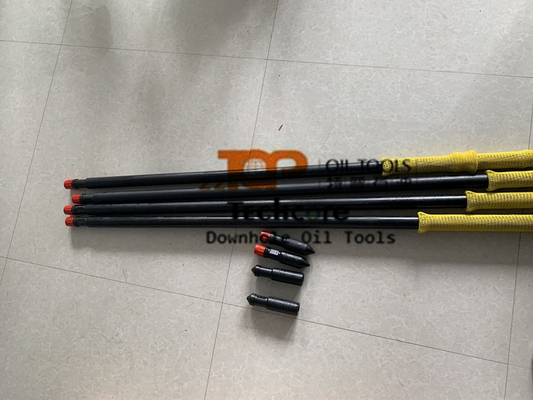

Oilfield Socket Type Sinker Bars Wireline Stem Section Weight Bar
The Sinker Bar is also named Weight Bar, which is wireline stem section. The Sinker Bar is designed to provide the necessary weight / mass to be be able to deploy a wireline toolstring in the well, against well pressure.Lead Filled Stems,sometimes called Sinker bars,provide the mass required in wireline operations although they should not be used in operations where heavy jarring is anticipated.Lead Filled Stems aslo enable the toolstring to fall against the differential pressure and friction at the wireline stuffing box.
Technical parameter of Sinker Bar
| Stem O.D | Fishneck O.D | Connections | Length | weight |
| 1.25＂ | 1.187＂ | 15/16UN | 36" | 16.3 |
| 1.25＂ | 1.187＂ | 15/16UN | 60" | 28.4 |
| 1.5＂ | 1.375＂ | 15/16UN | 24" | 18.5 |
| 1.5＂ | 1.375＂ | 15/16UN | 36" | 29.0 |
| 1.5＂ | 1.375＂ | 15/16UN | 60" | 50.5 |
| 1.875＂ | 1.75＂ | 1-1/16UN | 24" | 29.0 |
| 1.875＂ | 1.75＂ | 1-1/16UN | 36" | 46.5 |
| 1.875＂ | 1.75＂ | 1-1/16UN | 60" | 81.0 |
| 2.125＂ | 1.75＂ | 1-1/16UN | 24" | 31.1 |
| 2.125＂ | 1.75＂ | 1-1/16UN | 36" | 49.4 |
| 2.125＂ | 1.75＂ | 1-1/16UN | 60" | 86.0 |
| 2.5＂ | 2.313＂ | 1-9/16UN | 24" | 40.0 |
| 2.5＂ | 2.313＂ | 1-9/16UN | 36" | 68.8 |
| 2.5＂ | 2.313＂ | 1-9/16UN | 60" | 120.0 |
About the ZZ TOP Oil Tools
Strict quality control system
ZZTOP Oil Tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Continuous after sales service
Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.

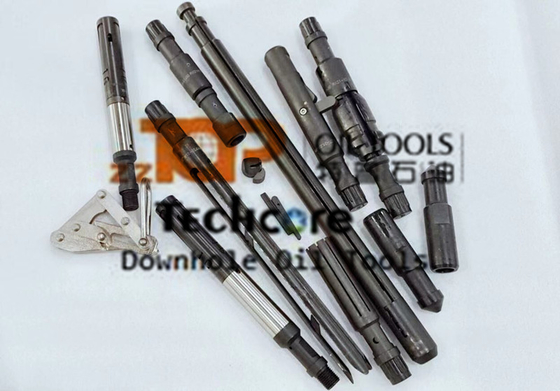

Wireline Tool String:
Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled, Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer Roller Centralizer
