Mechanical Tubing End Locator For Wireline / Slickline Operation

Mechanical Tubing End Locator For Wireline / Slickline Operation
Mechanical Tubing End Locator For Wireline / Slickline Operation Mechanical Tubing End Locator For Wireline / Slickline Operation

Large Image :  Mechanical Tubing End Locator For Wireline / Slickline Operation

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV
Model Number: Tubing End Locator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 200 sets/month

Mechanical Tubing End Locator For Wireline / Slickline Operation

Description
Application: Oilfield Slickline Operation Usage: Wireline Tools Location Of Nipple Profiles
Wireline Tool Size: 1.5" To 3.50" Connection: UN Thread
Standard: NACE MR0175 Working Condition: Standard
Material: Alloy Steel Product Name: Tubing End Locato
High Light:

Wireline Tubing End Locator

,

Oilfield Mechanical Tubing End Locator

,

Alloy Steel Oilfield Wireline Tools

Mechanical Tubing End Locator For Wireline / Slickline Operation

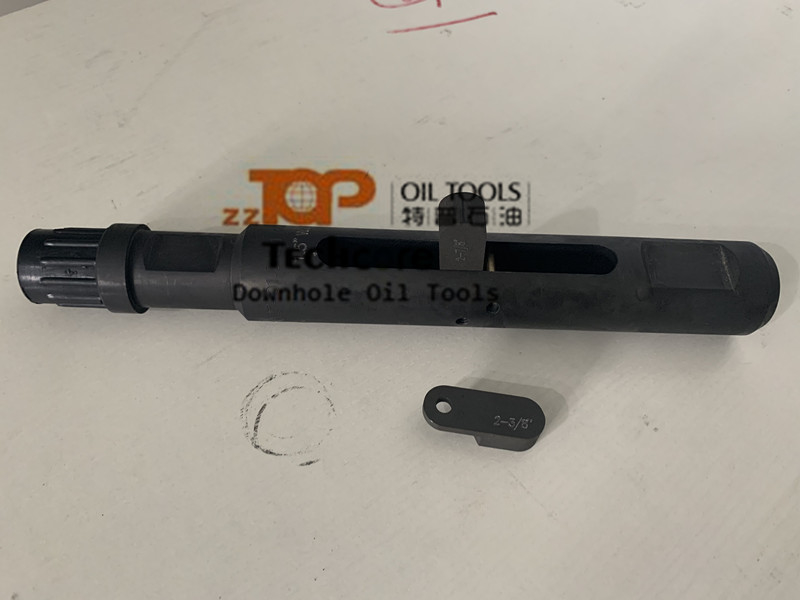

The Mechanical Tubing End Locator is a device for location of nipple profiles and/or the end of the production tubing. The tubing end locator is used to mechanically locate and determine the actual depth of the tubing end in relation to the measured wireline depth. The tubing end locator is composed of a grooved body and a locating key loaded by spring and fixed by pin in it. A shear pin limits the outward movement and rotation of the locating key. When the tubing end locator appears at the end of oil pipe, the locating key will stop at the location approximately vertical to the body to prevent the locator at the end of oil pipe from entering into the oil again,



Technical paramete of Tubing End Locator



Dimension of body Applicable Tubing Fishing neck
1.5" 2-3/8",2-7/8" 375"
1.75" 2-7/8", 3-1/2" 375"
2" 2-7/8", 3-1/2" 75"
2.5" 3-1/2", 4-1/2" 75"
3.5" 5-1/2", 7" 313"


Mechanical Tubing End Locator For Wireline / Slickline Operation 0


About the ZZ TOP Oil Tools



Strict quality control system



ZZTOP Oil Tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..



Continuous after sales service

Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.

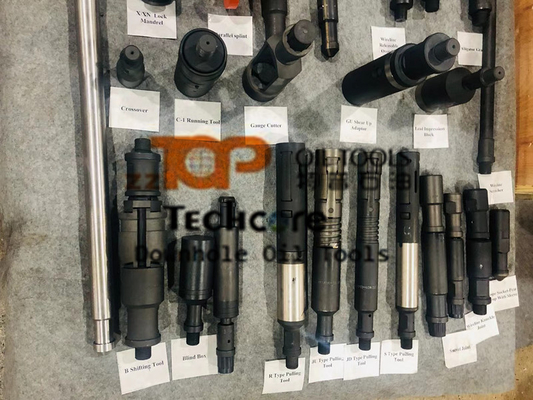

Wireline Tool String:



Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled, Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer Roller Centralizer



Welcome to contact us for information about the downhole tools
