Product Details:
|
| Application: | Oilfield Slickline Operation | Usage: | Wireline Tools String |
|---|---|---|---|
| Wireline Tool Size: | 1.25" To 2.50" | Connection: | UN Thread |
| Standard: | NACE MR0175 | Working Condition: | Standard |
| Material: | Alloy Steel | Product Name: | Disc And Spring Rope Socket |
| High Light: | Oilfield Spring Rope Socket,Slickline Spring Rope Socket,Wireline Tools Disc Socket |
||

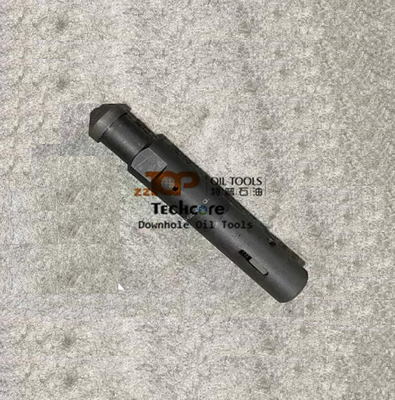

Oilfield Disc And Spring Rope Socket For Slickline Operation

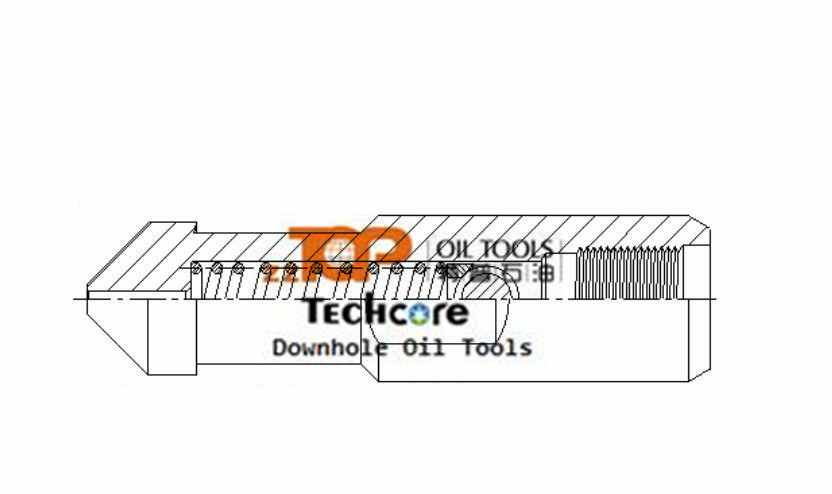

Disc & Spring Rope Sockets are the wireline tools and used to attach Slickline cable to the tool string, and the disc and spring rope socket are predominately used with small diameter Slickline cables up to and including 0.092”. The Rope Socket assembly consists of a body with an external fishing neck, spring, guide and wire carrier. The wireline is passed through the body, spring and guide before being wrapped tightly around the wire carrier. The short end of the wireline is firmly wrapped around the long end using several close wraps. A clean break made close to the last wrap allows the spring and guide to pass over the wraps. The knot is then installed into the body.
Technical parameter of Disc & Spring Rope Socket
| Size | Fishing neck | Connection |
| 1.0＂ | 0.875＂ | 5/8UN |
| 1.25＂ | 1.187＂ | 15/16UN |
| 1.5＂ | 1.375＂ | 15/16UN |
| 1.875＂ | 1.75＂ | 1-1/16UN |
| 2.125＂ | 1.75＂ | 1-1/16UN |
| 2.5＂ | 2.313＂ | 1-9/16UN |
About the ZZ TOP Oil Tools
Strict quality control system
ZZTOP Oil Tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Continuous after sales service
Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.
Wireline Tool String:
Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled, Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer Roller Centralizer
