Product Details:
|
| Application: | Oilfield Slickline Operation | Usage: | Wireline Tools String |
|---|---|---|---|
| Wireline Tool Size: | 1.25" To 2.50" | Connection: | UN Thread |
| Standard: | NACE MR0175 | Working Condition: | Standard |
| Material: | Alloy Steel | Product Name: | Rope Socket |
| High Light: | Pear Drop Rope Socket,Oilfield Slickline Drop Rope Socket,Wireline Tool String Steel Wire Socket |
||
Oilfield Slickline Pear Drop Rope Socket For Wireline Tool String

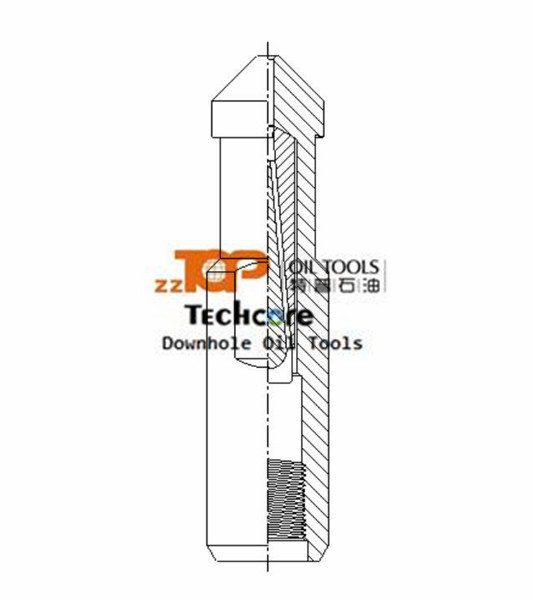

The rope socket is used to attach wireline to the tool string. The pear drop rope socket is the most convenient model, which clamps the wireline by the pear-shaped wedge. The pear drop rope socket consists of a body with an external fishing neck, sleeve and a brass wedge. It is a female thread on the bottom to connect the tool string. The tapered fishing neck on the top is used to fish and cut off the wireline efficiently. The sleeve and wedge are accommodated in the body with smooth inner hole. Pear Drop Rope Sockets are available in all common industry toolstring sizes and are manufactured with either sucker rod or integral quick connections as per customer
Technical parameter of Pear Drop Rope Socket
| Size | Applicable tubing | Applicable wireline | Fishing neck | Connection |
| 1.25＂ | 2-3/8＂ | 0.125″ | 1.187＂ | 15/16UN |
| 1.5＂ | 2-3/8＂～2-7/8＂ | 0.125″ | 1.375＂ | 15/16UN |
| 1.5＂ | 2-3/8＂～2-7/8＂ | 0.16″ | 1.375＂ | 15/16UN |
| 1.75＂ | 2-3/8＂～2-7/8＂ | 0.125″ | 1.375＂ | 15/16UN |
| 1.875＂ | 2-7/8＂～3-1/2＂ | 0.125″ | 1.75＂ | 1-1/16UN |
| 2.125＂ | 3-1/2＂～4-1/2＂ | 0.125″ | 1.75＂ | 1-1/16UN |
| 2.5＂ | Over 4-1/2＂ | 0.125″ | 2.313＂ | 1-9/16UN |
About the ZZ TOP Oil Tools
Strict quality control system
ZZTOP Oil Tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Continuous after sales service
Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.
Wireline Tool String:

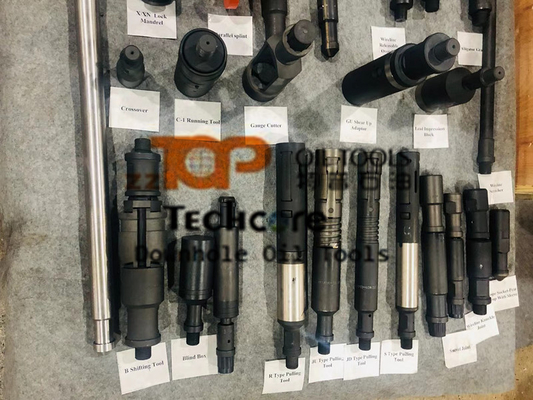

Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled, Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer Roller Centralizer
