Product Details:
|
| Application: | Wireline Operation | Product: | Pulling Tools |
|---|---|---|---|
| Type: | RB | Service: | Standard Oil Well Condition |
| Standard: | NACE MR0175 | Usage: | Wireline Tool String |
| Material: | Alloy Steel | Delivery: | 30 Days |
| High Light: | Wireline Self Releasing Pulling Tools,Alloy Steel Pulling Tools,Slickline RB Wire Pulling Tools |
||

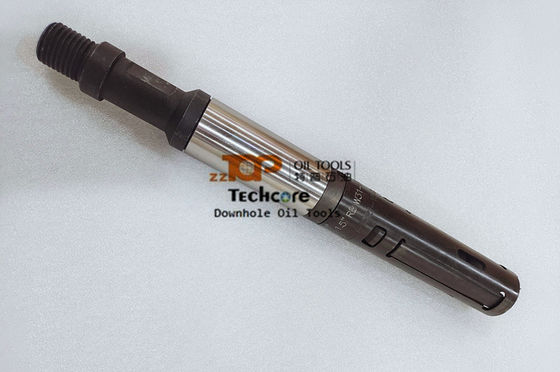

Pulling Tools- RB Type Self Releasing For Wireline / Slick Line Operation
RB Type pulling tools is one of Type R pulling tool, which is an outer pulling tool, which can grasp the shoulder of the outer fishing neck with special fishing claw and move upward to release the claw. The RB Type pulling tools is applied for wireline / slick line operation in oilfield.
RB pulling is used when there is a need to jar up or shear off of a subsurface tool and/or fish when a jar down tool is not desired. R-type pulling tool is composed of upper contact, outer cylinder, sleeve, shear pin sheath, main spring, secondary spring, spring seat, fishing claw, shear pin, etc.
Specification of RB Pulling Tools
| Nominal Size |
O.D | FNO D | To Engage FN | Reach | Core | Connection |
| 1.5" | 1.430" | 1.187' | 1.187" | 1.122" | RB | 15/16-10UN |
| 2 | 1.770” | 1.375" | 1.375" | 1.230” | 15/16-10UN | |
| 2.5” | 2.180" | 1.375" | 1.750" | 1.280” | 15/16-10UN | |
| 3" | 2.740" | 2.313” | 2.313” | 1.380" | 1-1/16-10UN | |
| 4” | 3.670" | 2.313” | 3.125" | 1.490” | 1-1/16-10UN |
About ZZ TOP Oil Tools
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
"Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Wireline Pulling Tools: R Type Pulling Tool, S Type Pulling Tool, JD Type Pulling Tool, JU Type Pulling Tool, Type GO Fishing Socket, Heavy Duty Pulling Tool, GS Type Pulling Tool, GU Shear Up Adaptor, GR Type Pulling Tool, Bell Guide Se
