Product Details:
|
| Application: | Well Completion Service | Size: | For 0.108" Wire |
|---|---|---|---|
| Material: | Alloy Steel | Service: | Standard/H2S |
| Connection: | Thread Or Quick Union | Specification: | 1.25" - 2.5" |
| Usage: | Wireline Tools / Slick Line Tools | Fishing Neck: | 1.187" - 2.313" |
| High Light: | Oil Gas Well Wireline Tools,Well Completion Slickline Tools,Alloy Steel Slickline Tools |
||

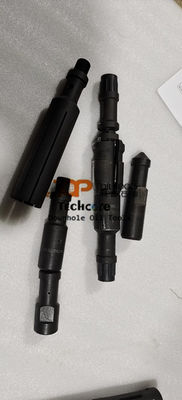

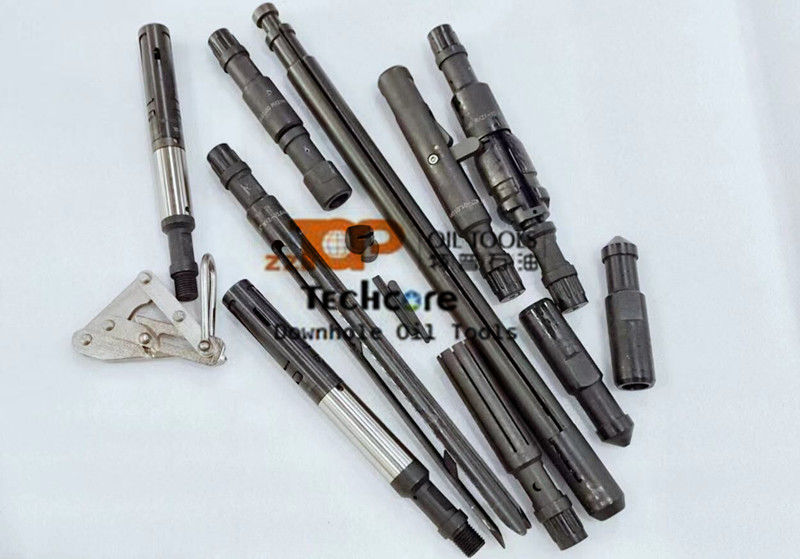

Oil and Gas Well Wireline Tools Slick Line Tools For Well Completion
The Wireline tools is also called Slick line tools, which is used in well completion operation.The Tool-string is the name give to any
assembly of equipment run in the well to perform some type of operation. In wireline work, the string is run, manipulated and
retrieved by the upward or downward movement of the wire which is itself raised and lowered by a winch at the surface.
The Wireline Tool String consists of a number of basic components with various other service tools attached according to the type of operation undertake.The tools can be attached to wireline or slickline and lowered into the well bore for well workover operation. So the wireline tools is also called slickline tools. In wireline work, the string is run, manipulated and retrieved by the upward or downward movement of the wire which is itself raised and lowered by a winch at the surface.
Specification of wireline tool string
| No. | Description | |
| 1 | 1.5 | Rope Socket for 0.108" wire, Pear Drop |
| 2 | 1.5 | Rope Socket for 0.125" wire, Pear Drop |
| 3 | 1.5 | Knuckle joint |
| 4 | 1.5 | Wire grab |
| 5 | 1.5 | Wire finder |
| 6 | 1.5 | Tubing end locator |
| 7 | 1.5 | Bomp Hunger |
| 8 | 1.5 | Otis type B shifting tool |
| 9 | 1.5 | SB Pulling tool |
| 10 | 1.5 | RB Pulling tool |
| 11 | 15" | Hay pully for 0.108" wire |
| 12 | 15" | Hay pully for 0.125" wire |
| 13 | Slickline clamp | |
| 14 | Slickline Wire cutter | |
About Techore Oil Tools
Techcore Oil Tools has committed to the design of downhole tools for more than ten years.With the professional Research and Development (R&D) department and skilled engineers, Techcore improves the advanced technology in design and manufacture of the downhole oil tools .
Strict quality control system
Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Wireline Tool String:
Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled, Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer, Roller Centralizer
