Product Details:
|
Type: | Full Bore Retrievable Packer | Operated Type: | Annular Pressure Operation |
---|---|---|---|
Working Pressure: | 10000 PSI | Working Condition: | H2S Service Above 175oF |
Application: | Oil Well Testing & Completion Operation | Standard: | NACE MR0175 |
Casing Size: | 7 Inch | Material: | Alloy Steel / Inconnel |
Product Name: | API 11D RTTS Packer Retrievable Casing Packer | Packing: | EXPORT PACKING |
Warranty: | 1 Year | Advantage: | Competitive Price & Good Quality |
Highlight: | well packer,open hole packer |

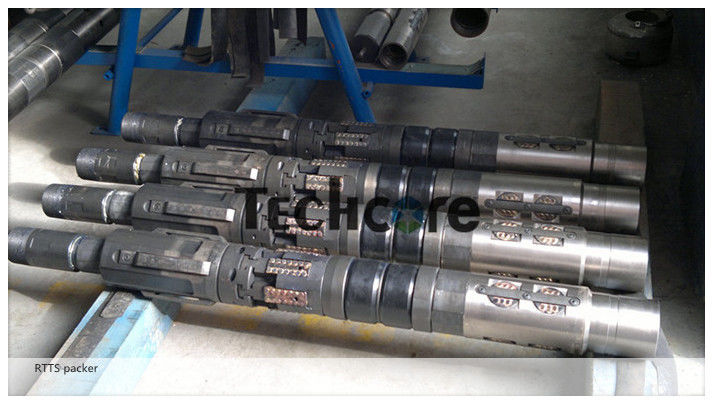

Oil Well Testing Full Bore Retrievable Packer 13 3/8" x 10000 psi
Halliburton Type RTTS Packer

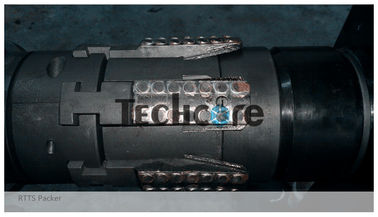

The RTTS Packer is a full bore retrievable packer used for oil and gas well testing, treating, and squeeze cementing operations. The RTTS packer is the hookwall type packer which can segregate bidirectional pressure designed. The design of full bore permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun.

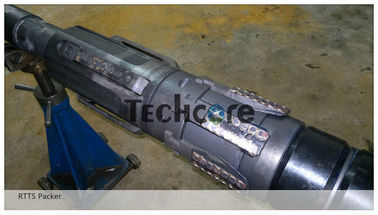

The RTTS packer is composed by a J-slot mechanism, mechanical slips, packing element, and hydraulic slips. Large, The packer is equipped with the drag block, which helps make the tool usable for multiple operations with one trip in the hole-such as perforate, test, treat, squeeze, perforate, etc. Generally, the RTTS packer is operated with circulating valve assembly and a safety joint.
Spare parts of the 13 3/8" RTTS packer
No. | Description | Qty | Unit | |
13 3/8 ‘’ RTTS Packer | ||||
1 | 102186667-01 | Hydraulic –slip body mandrel | 1 | ea |
2 | 102186667-02 | Sleeve retainer | 1 | ea |
3 | 102186667-03 | Hydraulic –slip sleeve | 1 | ea |
4 | 102186667-05 | Holding strap | 1 | ea |
5 | 102186667-08 | Seal cylinder | 1 | ea |
6 | 102186667-04 | Inconel bolt | 1 | ea |
7 | 102186667-06.00 | Hydraulic –slip | 1 | ea |
8 | 102186667-07 | Slip retractor spring | 1 | ea |
9 | 102186667-10 | Locking pin | 1 | ea |
10 | 102186667-09 | Volume tube | 1 | ea |
11 | 102186667-12 | Top shoe | 1 | ea |
12 | 102186667-13 | Packer ring | 1 | ea |
13 | 102186667-14 | Rubber spacer ring | 1 | ea |
14 | 102186667-15 | Lower shoe | 1 | ea |
15 | 102186667-16 | Mechanical slip body | 1 | ea |
16 | 102186667-11 | Packer mandrel | 1 | ea |
17 | 102186667-17 | Slip stop pin | 1 | ea |
18 | 102186667-18.00 | Mechanical slip | 1 | ea |
19 | 102186667-19 | Screw | 1 | ea |
20 | 102186667-20 | Split ring collar | 1 | ea |
21 | 102186667-22 | Lower mandrel | 1 | ea |
22 | 102186667-21.00 | Drag block sleeve | 1 | ea |
23 | 102146667-18.00 | Drag block | 1 | ea |
24 | 102146667-19 | Inconel drag block spring | 1 | ea |
25 | 102146667-22 | Inconel bolt | 1 | ea |
26 | 102146667-20 | Keeper | 1 | ea |
27 | 102186667-23 | Lower pin | 1 | ea |
** We are able to supply the RTTS packer parts in Halliburton Type
Technical parameter of 13 5/8" RTTS packer
No | Specifications | 13 3/8" |
1 | Casing Weight Range(lb/ft) | 13 3/8" 48-72lb/ft |
2 | Packer Ring OD | 298.1mm |
3 | Top Shoe OD | 303.1mm |
4 | Min. ID of tool | 95.3mm |
5 | Length | 2573mm |
6 | Pressure differential across the pacing ring | 70MPa |
7 |
Internal Yield Pressure strength (Bursting pressure) |
98MPa |
8 |
External Yield Pressure strength (Collapse Pressure) |
92MPa |
9 | Tensile Strength(Yield) | 1550KN |
10 | Torque Strength | 126KN·m |
11 | Service environment | Mud, Crude Oil, Natural gas with H2S and acid |
12 | Service temperature | --29oC~+204oC |
13 | End connections | 4 1/2" IF. BXP |
