DAV Rupture Disc Valve

DAV Rupture Disc Valve
DAV Rupture Disc Valve DAV Rupture Disc Valve

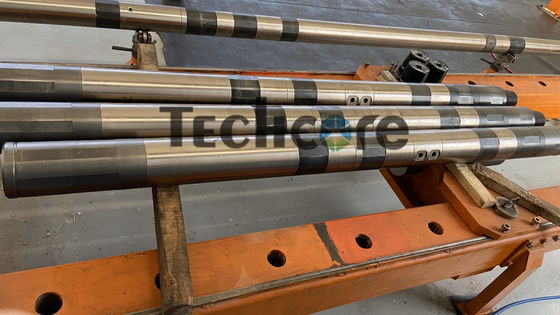

Large Image :  DAV Rupture Disc Valve

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV
Model Number: RD DAV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 20-30 days
Supply Ability: 100 sets/month

DAV Rupture Disc Valve

Usage: Gas Well Testing Application: Drill Stem Testing Operation
Valve Type: Ball Valve Control Type: Rupture Disc Control
Product: Rupture Disc Dual Valve Working Condition: H2S Service Above 175oF / Full H2S
Working Pressure: 10000 Psi Connection: IF Box X Pin
Standard: NACE MR0175 Delivery: 20-30 Days
High Light:

pressure safety valve


downhole valve

Well Testing Operation Rupture Disc Dual Action Valve Downhole Tester Valve


In drill stem testing operation, there are different tester valves including select tester valve, LPR-N valve, tubing string tester valve and dual action valve. The dual action vlave is a full-opening and ball valve type tester valve and  controlled by annular Rupture disc. The dual action valve can be used as a tester valve or a safety valve to close the well under emergency condition.

The RD-DAV can be run in hole in either the open or closed position, the tool can be operated by twice, so called as Dual action
or dual shot valve.
A two-way ratchet of the dual action valve is used to prevent the operator mandrel from shifting, except in response to annulus overpressure.


The rupture disc dual action valve can be applied for many operations in high pressure high temperature oil wells and gas wells including downhole testing operation, well completion operation, reservoir testing operation, also the the dual action vlave can be used in deviated and deepwater wells.


Specification of Dual Action valve


Type DAV- Standard DAV-HP
Max. OD, in  5 [
Tool ID, in  2.25  2.25

Pressure ratings

Max. differential across wall, psi





Max. annular, psi  12,000  20,500
Max. tubing, psi  13,000  23,500
Max. across ball from above, psi  10,000 15,000
Max. across ball from below, psi  10,000  15,000
Temperature rating, degF  350  350
Length, ft 5.08 5.08
Weight, lbm  246  246
Service (NACE International MR-0175) H2S, acid H2S, acid
Tensile strength at min. yield, lbf  350,000  350,000
Connection 31⁄2 IF 31⁄2 IF or PH-6

DAV Rupture Disc Valve 0    DAV Rupture Disc Valve 1


Advantage of Techcore Oil Tools


Techcore Oil Tools expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.


Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.


* Techcore insist on superior quality, strong packing & timely delivery.

*Third party inspection is available from SGS, BV, DNV etc.

* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the customers' benefits

* Techcore supply the cost effect products with 12 months guarantee

* Techcore insist on the traceability of each Drill stem testing tools and related DST parts


Welcome to contact us for more information of the downhole tools!
