5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF

5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF
5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF 5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF

Large Image :  5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF

Product Details:
Place of Origin: China
Brand Name: TECHCORE
Certification: ISO, BV
Model Number: IPOV510004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 10 SET/MONTH

5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF

Description
Application: Open Hole Drill Stem Testing Type: VR Safety Joint
Working Pressure: 10000 Psi Tool Size: 5 Inch
Connection: 3 1/2 IF Box X Pin Working Condition: H2S Above 175oF
Material: AISI Alloy Steel Package: Polywood Case
High Light:

dst tool

,

dst well test

5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF

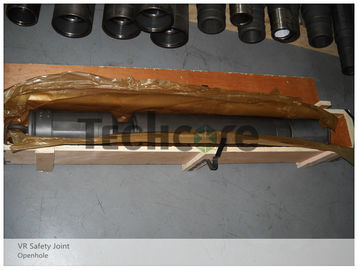

Introduction of VR Safety Joint

The VR Safety joint is the tool of the DST working string used for the openhole well testing service. The VR safety joint is run in hole above the packer assembly to ensure that a minimum number of tools are left in the hole if it becomes necessary to release the safety joint. The bypass of the VR joint acts as an auxiliary to the Hydro spring tester bypass to allow fluid to pass though the packer while the work string is being pulled out of the hole.


Features of Open hole VR safety joint

* The VR safety joint is with compact structure,
* The VR safety joiint is right-hand safety joint used in the drill stem testing string
* It is easy to install and mainten the open hole VR Safety Joint.

Specification of Open hole VR safety joint


NoSpecification5”
1OD127.5mm(5”)
2ID25mm(1”)
3Length(mm)963mm(38”)
4Working pressure10000psi(70Mpa)
5Tensile strength(yield)1628kN
6Bursting pressure113.6Mpa(16488psi)
7Collapse pressure150Mpa(21771psi)
8Torque strength15kN·m
9Through area1700mm2
10Service EnvironmentMud, crude oil, natural gas with H2S,apply to NACE MR0175-2002
11End connections3 1/2 IF BXP
12Service Temperature-20oF~+400oF



5 Inch 10000 PSI Open Hole DST VR Safety Joint Right Hand H2S Above 175oF 0

About Techcore Oil Tools

Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.

Techcore insists on the traceability of each Drill stem testing tools and related DST parts from the
raw material to the finished products to meet on requirements of onshore and offshore standards.

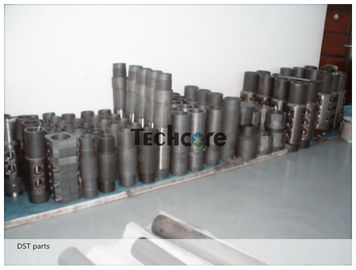

Drill stem testing tools for cased hole, open hole and slim hole:

Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint, downhole tester valve, select tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
