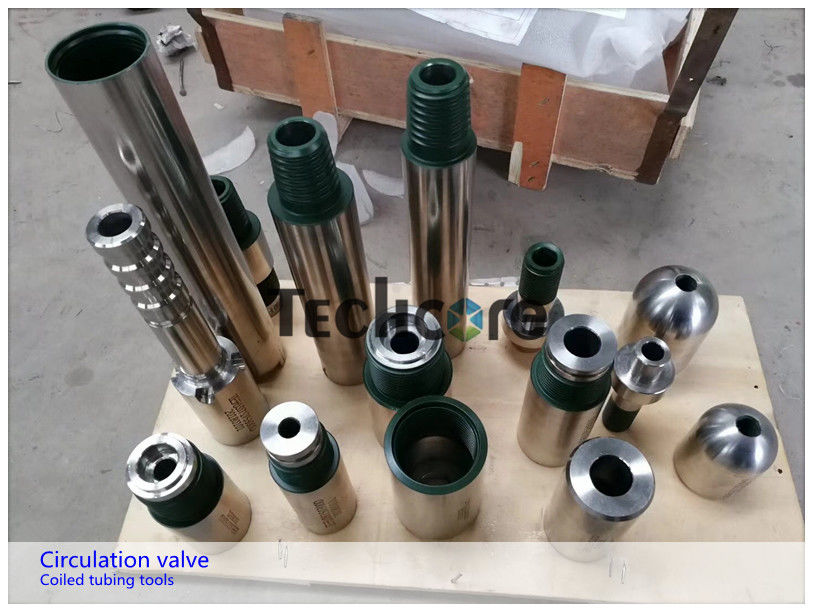

Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation

Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation
Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation

Large Image :  Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV
Model Number: CT Circulation Sub
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 200 sets/month

Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation

Description
Type: Coiled Tubing Tools Tool Size: 1 11/16" To 2 7/8"
Working Pressure: 5000 Psi Standard: NACE MR0175
Thread: AMMT Pin X Box Working Condition: Standard Service & H2S
Material: Alloy Steel Usage: Donwhole Coiled Tubing Service
Processing Type: Forging Condition: New
Product Name: Burst Disc Circulation Sub
High Light:

coiled tubing downhole tools

,

thru tubing tools

Burst Disc Circulation Sub Primary Coiled Tubing Tools for Downhole Operation

Introduction of
Burst Disc Circulation Sub



The burst disc circulation sub is a kind of circulation valve for downhole operation. The burst disc circulation sub is a standard component of coiled tubing tool string that is used in conjunction with tools that require the drop ball. During the coiled tubing operation, when circulation is lost due to downhole restriction, , a predetermined pressure applied to the coil will burst the disc, so that the coiled tubing establishes a circulation passage with the annulus.





Features of  Burst Disc Circulation Sub



*   Simple and compact structure of the buist disc circulation valve.

*  The burst disc circulation valve is easy for operation, maintenance

*  The rupture disk is selected according to the operation with high precision of burst pressure.

*   Rupture disc of the circulation valve is resistant to corrosion and high temperature





Technical parameter of Burst Disc Circulation Sub





CT size/in

OD/in

ID/in

Service

Connection

Working pressure

Working temperature

1 11/16

1.688

0.39

H2S

1 AMMT Box x Pin

5,000 PSI

0°F

350°F

1 3/4

1.750

0.406

H2S

1 AMMT Box x Pin

5,000 PSI

0°F

350°F

2 1/8

2.125

0.875

H2S

1 1/2 AMMT Box x Pin

5,000 PSI

0°F

350°F

2 1/4

2.250

0.875

H2S

1 1/2 AMMT Box x Pin

5,000 PSI

0°F

350°F

2 3/8

2.375

0.875

H2S

1 1/2 AMMT Box x Pin

5,000 PSI

0°F

350°F

2 7/8

2.875

1.380

H2S

2 3/8 PAC Box x Pin

5,000 PSI

0°F

350°F

3 1/8

3.125

1.000

H2S

2 3/8 PAC DSI Box x Pin

5,000 PSI

0°F

350°F

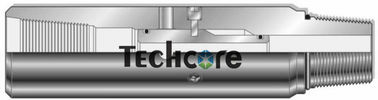

Burst Disc Circulation Sub



Alloy Steel Coiled Tubing Tools Burst Disc Circulation Sub For Downhole Operation 0


Order Remark for the Coiled Tubing Tools

*  Different sizes of tools can be customized according to user requirements.
*  The parameters are based on the test value.
*  Different materials are selected according to the environment of the tool.
*  The materials are selected to meet the NACEMR0175 standard.
*  Connecting threads can be selected as “AMMT”, “PAC” or other API threads specified by the user.



Related downhole oil tools manufactured by Techcore



* Drill stem testing tools for cased hole, open hole and slim hole:



Retrievable packer, circulating valve, safety joint, downhole tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.





*Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.



* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body



* Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
