Product Details:
|
| Type: | High Pressure Retrievable Packer | Working Pressure: | 15000 PSI |
|---|---|---|---|
| Working Condition: | H2S Service Above 175oF / Full H2S | Application: | Drill Stem Testing Operation |
| Standard: | NACE MR0175 | Casing Size: | 7 Inch |
| Material: | Alloy Steel / Inconnel | Usage: | Cased Hole Well Testing |
| Model: | APR Tools | Connection: | CAS Box X Pin |
| High Light: | well packer,open hole packer |
||

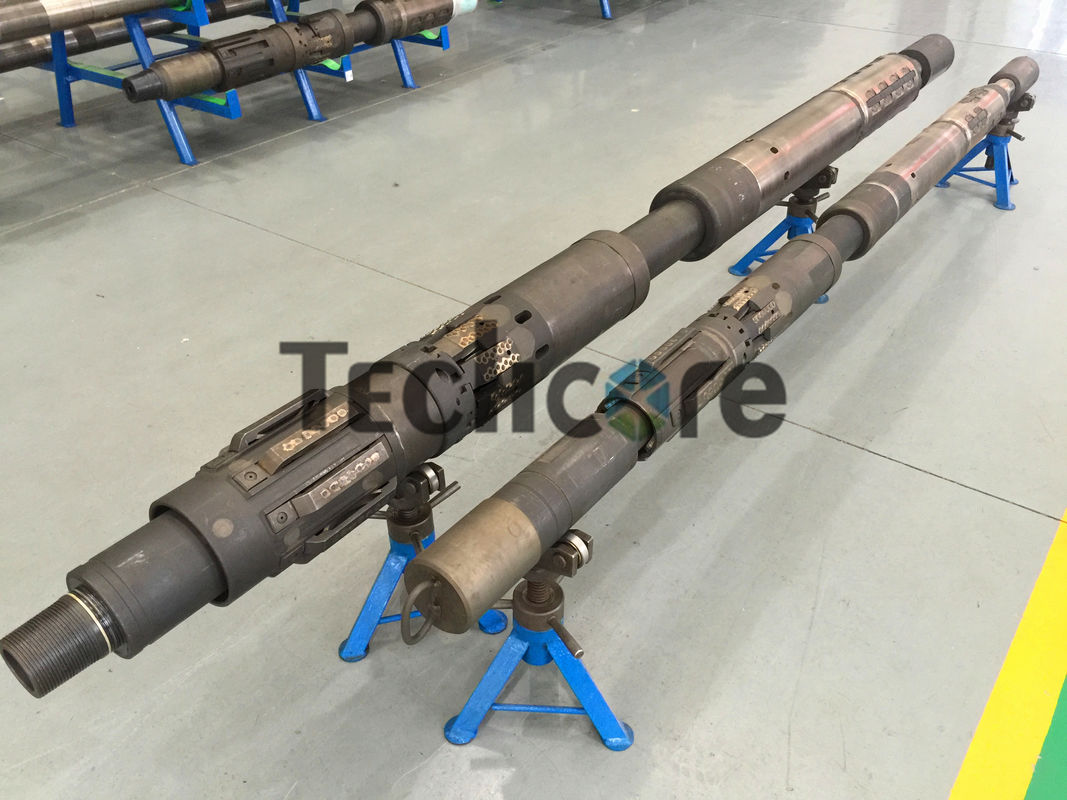

Drill Stem Testing High Pressure Retrievable Packer 15000 psi
The High Pressure CHAMP Packer is a kind of retrievable packer used in oil well or gas well testing operation. The CHAMP Packer is improved from RTTS Packer which is a full opening packer. The CHAMP IV Packer has a concentric bypass and the working pressure of the CHAMP packer can be up to 15000 psi. The CHAMP IV Packer has the capability of circulating below the packer and other parts have the same function as RTTS Packer. The CHAMP packer is able to apply for drill stem testing operation and tubing conveyed perforating operation.
Each assembled tool includes the following components:
• J-slot mechanism
• mechanical slips
• packer elements
• hydraulic slips
• bypass
Features and Benefits of the CHAMP Packer
* The CHAMP packer is a hookwall-type retrievable packer with concentric bypasses
* CHAMP PACKER is applied in highly deviated wells in HPHT working condition.
* It is easy to relocate the CHAMP packer in multiple zones during a single trip for treating, testing or squeezing.
* The concentric bypass valve on the CHAMP Packer allows a larger bypass flow area.
Specification of High Pressure Retrievable Packer
| Item | Description | Size | Connection |
| 1 | Slimhole 15K Retrieveable Packer 105Mpa, 400F | 5” 11.5-15# | 2 7/8” CAS BXP |
| 2 | Slimhole 15K Retrieveable Packer 105Mpa, 400F | 5” 18-21.4# | 2 7/8” CAS BXP |
| 3 | 15K Retrieveable Packer, 105Mpa, 400F | 7” 41-19.5# 6 5/8” 28-32# |
3 1/2” IF BXP 3 7/8” CAS BXP |
| 4 | 15K Retrieveable Packer, 105Mpa, 400F | 7” 17-26# | 3 1/2” IF BXP 3 7/8” CAS BXP |
| 5 | 15K Retrieveable Packer, 105Mpa, 400F | 7” 29-35# | 3 1/2” IF BXP 3 7/8” CAS BXP |
| 6 | 15K Retrieveable Packer, 105Mpa, 400F | 7” 38# | 3 1/2” IF BXP 3 7/8” CAS BXP |
| 7 | 15K Retrieveable Packer, 105Mpa, 400F | 9 5/8” 29.3-40# | 4 1/2”IF BXP |
| 8 | 15K Retrieveable Packer, 105Mpa, 400F | 9 5/8” 43.5-58.4# | 4 1/2” IF BXP |
| 9 | 15K Retrieveable Packer, 105Mpa, 400F | 9 5/8” 59.4-75.6# | 4 1/2”IF BXP |
Advantage of Techcore Oil Tools
Techcore Oil Tools expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.
* Drill stem testing tools are available for cased hole, open hole and slim hole including:
Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint, downhole tester valve, select tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
Welcome to contact us for more information!
