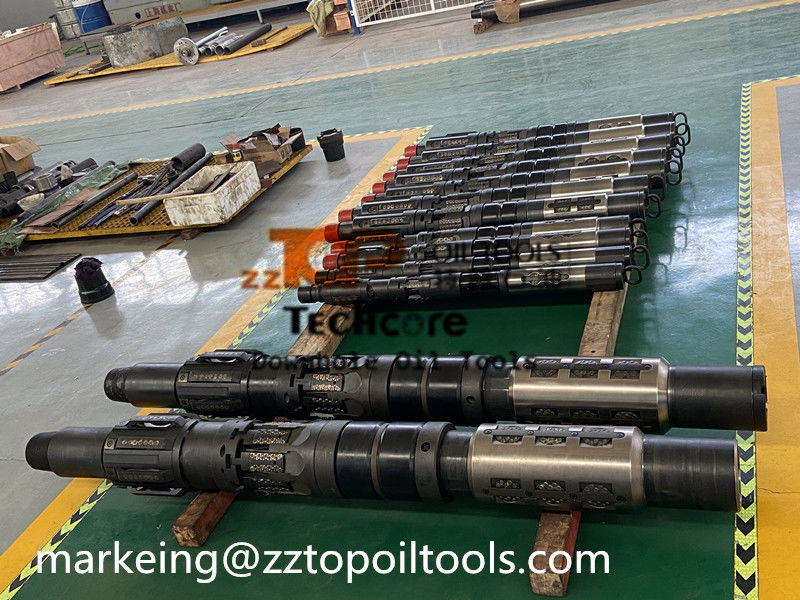

Downhole Testing RTTS Retrievable Packer Mechanical Setting

Downhole Testing RTTS Retrievable Packer Mechanical Setting
Downhole Testing RTTS Retrievable Packer Mechanical Setting Downhole Testing RTTS Retrievable Packer Mechanical Setting

Large Image :  Downhole Testing RTTS Retrievable Packer Mechanical Setting

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV, SGS
Model Number: 7" x 10000psi RTTS Packer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 50sets/month

Downhole Testing RTTS Retrievable Packer Mechanical Setting

Description
Type: Mechanical Setting Retrievable Packer Operated Type: APR Tools
Working Pressure: 10000 PSI Working Condition: H2S Service Above 175oF
Application: Oil Well Testing & Completion Operation Standard: NACE MR0175
Casing Size: 7 Inch Material: Alloy Steel / Inconnel
Product Name: API 11D RTTS Packer Retrievable Casing Packer Packing: EXPORT PACKING
Warranty: 1 Year Advantage: Competitive Price & Good Quality
High Light:

Retrievable Mechanical Set Packer

,

Downhole Testing Mechanical Packer

,

RTTS Downhole Packer

Downhole Testing Packer Mechanical Setting Retrievable Packer RTTS Packer 7" x 10000psi



The RTTS Packer is a full bore retrievable packer with mechanical setting and used for oil and gas well testing, treating, and squeeze cementing operations. The RTTS packer is the hookwall type packer which can segregate bidirectional pressure designed. The RTTS packer is composed by a J-slot mechanism, mechanical slips, packing element, and hydraulic slips. Large, The packer is equipped with the drag block, which helps make the tool usable for multiple operations with one trip in the hole-such as perforate, test, treat, squeeze, perforate, etc. Generally, the RTTS packer is operated with circulating valve assembly and a safety joint. The design of full bore permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun.



Specification of RTTS Packer



No. P.N. Description Qty Unit
1   RTTS PAPCKER, 9 5/8" (29.3-43.5 LB/FT) CASING, 10.000 PSI, 80 DURO NBR, 4-1/2" IF BOX X PIN 2 Ea
1.1   RTTS PAPCKER, 9 5/8" (29.3-43.5 LB/FT) Redress Kit,
1set=1Run
1 Set
1.2

RTTS PAPCKER, 9 5/8" (29.3-43.5 LB/FT)

Spare Packer elements, 2pcs=1set NBR

1 Set
2   RTTS PAPCKER, 7" (23-29 LB/FT) CASING, 10.000 PSI, 85 DURO NBR, 4-5/32"_8N-M BOX X 2-7/8" EUE 8RD PIN 7 Ea
2.1   RTTS PAPCKER, 7" (23-29 LB/FT) Redress Kit, 1set=1Run 1 Set
2.2

RTTS PAPCKER, 7" (23-29 LB/FT)

Spare Packer elements, 2pcs=1set NBR

1 Set
3   RTTS PAPCKER, 5-1/2" (13-20 LB/FT) CASING, 10.000 PSI, 85 DURO NBR, 3-1/2"_8N-M BOX X 2-7/8" EUE 8RD PIN 2 Ea
3.1   RTTS PAPCKER, 5-1/2" (13-20 LB/FT) Redress Kit,
1set=1Run
1 Set
3.2

RTTS PAPCKER, 5-1/2" (13-20 LB/FT)

Spare Packer elements, 2pcs=1set NBR

1 Set
4   RTTS PAPCKER, 4-1/2" (11.6-13.5 LB/FT) CASING, 10.000 PSI, 85 DURO NBR, 3-3/32"_10UNS-2B BOX X 2-3/8" EUE 8RD PIN 2 Ea
4.1   RTTS PAPCKER, 4-1/2" (11.6-13.5 LB/FT) Redress Kit,
1set=1Run
1 Set
4.2

RTTS PAPCKER, 4-1/2" (11.6-13.5 LB/FT)

Spare Packer elements, 2pcs=1set NBR

1 Set




** We are able to supply the RTTS packer parts in Halliburton Type


Downhole Testing RTTS Retrievable Packer Mechanical Setting 0


About ZZ TOP Oil Tools



ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".

ZZ TOP Oil Tools can also support client with One-Stop Procurement Service and flexible payment term under short or long term financing service. We always believe that the success of our company is directly related to our strict quality control and professional service. From the raw material booking till finished products, the inspector will be appointed to supervise the whole processing. We always provide clients with innovative solutions, quality materials and timely delivery.



Drill stem testing tools for cased hole, open hole and slim hole:



* Full bore retrievable packer: RTTS packer, mechanical setting retrievable packer, Double grip mechanical setting retrievable packer, Single grip mechanical setting retrevable packer, CHAMP packer, High pressure retrievable packer, high pressure retrievable packer with bypass



* Downhole Tester Valve: Select tester valve, LPR N Tester valve, tubing string test valve



* Circulating valve: full bore retrievable circulating valve, multi-cycle circulating valve, omni valve, RD safety circulating valve, IPO valve, RTTS Circulaitng valve, Hydraulic circulating valve



* Shock Absorber: Vertical shock absorber, Radial shock absorber



* Safety valve: RTTS safety valve, Super Safety valve, BOP safety valve



Welcome to contact us for more information about our tools and service!
