Product Details:
|
| Application: | Oil Well Testing Operation | Size: | 1.25-2.5" |
|---|---|---|---|
| Usage: | Changing Of Components In Wireline Tool String | Service: | Standard/H2S |
| Connection: | SR,QLS,BLQJ,HDQRJ | Material: | Alloy Steel |
| Type: | Slick Line Swivel Joint | Product Scope: | Wireline Tool String / Slick Line Tool String |
| High Light: | String Swivel Joint Oilfield Wireline Tools,1.5" Oilfield Wireline Tools,QLS Oilfield Wireline Tools |
||

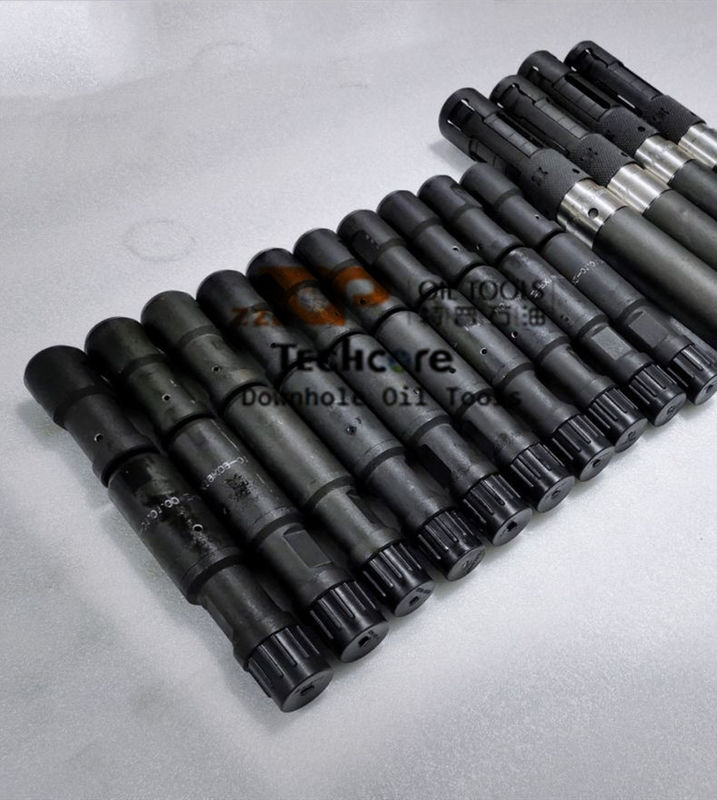

Oilfield Wireline Tool String Swivel Joint 1.5" Slick Line Tools
The Swivel Joint is the component of wireline tool string, which is designed to assist in the changing of components in the wireline tool string. The swivel design allows the operator to change out long sections without having to physically rotate them. The wireline swivel joint is installed directly below the rope socket to provide rotation of the tool string, normally the swivel joint incorporates Heavy-Duty Thrust Bearings for durability and reliability.The Wireline Swivel Joint consists of upper sub, lower sub, mandrel, bearing sleeve, thrust ball bearing, etc..
Specification of wireline swivel joint
| Actual O.D. | Fishneck O.D. | Connection | |
| 1 | 1.25＂ | 1.187" | 15/16UN |
| 2 | 1.5＂ | 1.375＂ | 15/16UN |
| 3 | 1.875＂ | 1.75＂ | 1-1/16UN |
| 4 | 2.125" | 1.75" | 1-1/16UN |
| 5 | 2.25" | 1.75" | 1-1/16UN |
| 6 | 2.5＂ | 2.313＂ | 1-9/16UN |
About Techore Oil Tools
Techcore Oil Tools has the professional Reserch and Development (R&D) department with skilled engineers whom were committed to the design of downhole tools for more than ten years and Techcore is equiped with advance equipments to manufacture the oil downhole tools and its related parts in high quality.
* Techcore can design the well testing downhole tools as per the customers' well condition
* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the customers' benefits
* Techcore insist on the traceability of each tools and related parts
* High quality and cost effective products
Product scope:

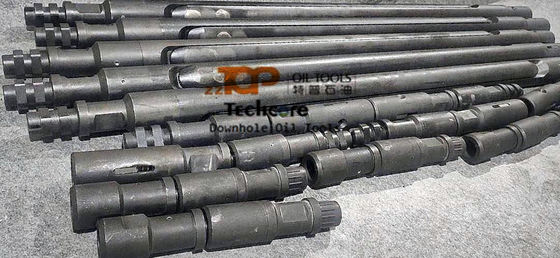

Wireline Tool String: Rope Socket- Pear Drop, Rope Socket-Disc&Spring Type, Rope Socket- Slip Type, Swivel Joint, Heavy Duty Swivel Joint, Stem-Standard, Stem-Tungsten,Stem-Lead Filled,
Stem- Tungsten Filled, Stem-Roller, Accelerator, Link Jar, Tubular Jar, Spring Jar, Hydraulic Jar, Knuckle Jar, Breech Lock Quick Joint, BDK Heavy Duty Q.R.J, Wireline Knuckle Quick Joint, Crossover, Wireline Knuckle Joint, Heavy Duty Knuckle Joint, Spring Centralizer, Fluted Centralizer, Roller Centralizer
Wireline Auxiliary Tools : Gauge Cutter, Gauge Cutter Ring Set, Guide Type Scraper, Tubing Broach, Diamond Tubing Broach, Tubing Swage, Wireline Brush, Wireline Scratcher, Sand Pump Bailer, Hydro static Bailer, Sample Bailer, Sample Collector, Dump Bailer, Skirted Magnet, Tubing End Locator, Two Arm Repeatable Tubing End Locator, Wireline Entry Guide,
