Product Details:
|
| Material: | Alloy Steel, Stainless Steel, Inconel | Size: | 1.25-2.5" |
|---|---|---|---|
| Application: | Wireline Service / Slick Line Service | Service: | Standard/H2S |
| Fishing Neck: | As Required | Connection: | Thread Or Quick Union |
| Specification: | 1.25" - 2.5" | Working Pressure: | 5000 Psi |
| High Light: | Oilfield Wireline Tools,String Knuckle Jar Wireline Tools,5000psi Wireline Tools |
||

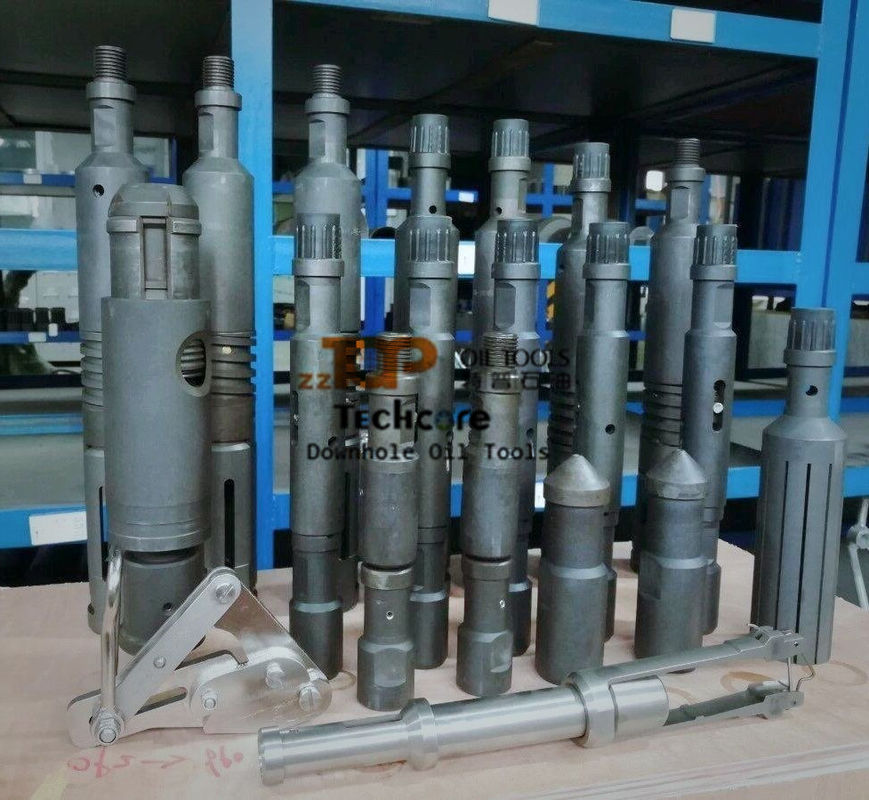

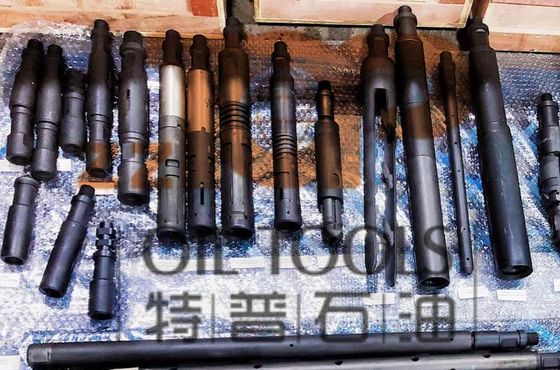

Oilfield Wireline Tool String Knuckle Jar & Rope Socket & Swivel Joint
The Wireline Tool String consists of a number of basic components with various other service tools attached according to the type of operation undertake.The tools can be attached to wireline or slickline and lowered into the well bore for well workover operation. So the wireline tools is also called slickline tools. In wireline work, the string is run, manipulated and retrieved by the upward or downward movement of the wire which is itself raised and lowered by a winch at the surface.
There are many different operations and may different conditions to be satisfied in each operation, so that the number and type of service tools available is very large, although some tools are used far more frequently than others. the precise configuration of tool string will be contingent on factors such as job type, access, hole deviation, depth, pressure, completion type, log history and so on.
Specification of wireline tool string
| NO. | Products | Main Specifications |
| 1 | Rope Socket- Pear Drop | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 2 | Rope Socket-Disc&Spring Type | 1＂,1.25＂,1.5＂,1.875＂,2.125＂,2.5＂ |
| 3 | Rope Socket- Slip Type | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 4 | Swivel Joint | 1.5＂,1.75＂,1.875＂,2.5＂ |
| 5 | Heavy Duty SwivelJoint | 1.5＂,1.75＂,1.875＂,2.5＂ |
| 6 | Stem-Standard | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 7 | Stem-Tungsten | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 8 | Stem-Lead Filled | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 9 | Stem- Tungsten Filled | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 10 | Stem-Roller | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 11 | Accelerator | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂,3＂ |
| 12 | Link Jar | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 13 | Tubular Jar | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 14 | Spring Jar | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 15 | Hydraulic Jar | 1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 16 | Knuckle Jar | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 17 | Breech Lock Quick Joint | 1.5＂,1.875＂,2.5＂ |
| 18 | BDK Heavy Duty Q.R.J | 1.5＂,1.875＂,2.5＂ |
| 19 | Wireline Knuckle Quick Joint | 1.5＂,1.875＂,2.5＂ |
| 20 | Crossover | 15/16UN,1-1/16UN,1-9/16UN,1/2-13UN,5/8-11UN,3/4-16UN |
| 21 | Wireline Knuckle Joint | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 22 | Heavy Duty Knuckle Joint | 1.25＂,1.5＂,1.75＂,1.875＂,2.125＂,2.5＂ |
| 23 | Spring Centralizer | 1.5＂,1.875＂,2.125＂,2.5＂ |
| 24 | Fluted Centralizer | 2-3/8＂,2-7/8＂,3-1/2＂,4-1/2＂ |
| 25 | Roller Centralizer | 1.5＂,1.75＂,1.875＂,2.5＂ |
