APR Mechanical Setting Retrievable Packer High Pressure

APR Mechanical Setting Retrievable Packer High Pressure
APR Mechanical Setting Retrievable Packer High Pressure APR Mechanical Setting Retrievable Packer High Pressure APR Mechanical Setting Retrievable Packer High Pressure

Large Image :  APR Mechanical Setting Retrievable Packer High Pressure

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV, SGS
Model Number: 5" RTTS Packer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 50sets/month

APR Mechanical Setting Retrievable Packer High Pressure

Description
Type: APR Tools Application: Oil Well Testing & Completion Operation
Working Pressure: 10000 PSI Working Condition: H2S Service Above 175oF
Standard: NACE MR0175 Casing Size: 5 Inch
Material: Alloy Steel / Inconnel Product Name: API 11D RTTS Packer Retrievable Casing Packer
Packing: EXPORT PACKING Warranty: 1 Year
High Light:

Mechanical Setting Retrievable Packer

,

High Pressure Retrievable Packer

,

APR Retrievable Packer


Mechanical Setting Retrievable Packer High Pressure RTTS Packer


The RTTS Packer is a kind of full bore retrievable packer, the RTTS packers are applied for oil and gas well testing, treating, and squeeze cementing operations. The full opening design allows unrestricted fluid flow and tool movement through the tubing bore. A pressure balanced bypass valve worked with RTTS packer is the RTTS circulating valve to held open when running and retrieving, prevents swabbing effect. The valve also allows debris to be washed from the top of the packer when releasing. The bypass valve is held closed by pressure from below and in turn helps prevent upward movement of tubing.
The RTTS packer is consist of a J-slot mechanism, mechanical slips, packing element, and hydraulic slips. Large, The packer is equipped with the drag block, which helps make the tool usable for multiple operations with one trip in the hole-such as perforate, test, treat, squeeze, perforate, etc.

Specification of RTTS packer



Casing Size OD (mm) ID (mm) Drag block OD (mm) Total length(mm) Thread connection
4 1/2〞 Ф93.5 Ф42 Ф110.7 1222 2 3/8EUE. Box × Pin,
5〞 Ф103 Ф45 Ф120.7 1226 3 3/32-10UN. Box × 2 7/8EUE. Pin
5 1/2〞 Ф115.5 Ф48 Ф133.5 1232 3 1/2-8UN. Box ×2 7/8EUE. Pin
7〞 Ф143.5 Ф61 Ф169.6 1380 4 5/32-8UN. Box ×2 7/8EUE.Pin
7 5/8〞 Ф161 Ф61 Ф179.6 1378 4 5/32-8UN. Box ×2 7/8EUE. Pin
7 7/8〞 Ф165 Ф76 Ф190.5 1460 4 5/32-8UN. Box B×2 7/8EUE. Pin
8 5/8〞 Ф187 Ф76 Ф220 2088 4 1/2IF. Box × Pin
9 5/8〞 Ф209.5 Ф101 Ф242 2088 4 1/2IF. Box × Pin
10 3/4〞 Ф239 Ф95 Ф264 2088 4 1/2IF. Box × Pin


5" x 10000psi RTTS Packer Spare Parts



Item Description Qty
1 Hydraulic Hold-Down Body 1
2 Bolt 9
3 Hydraulic Slip 6
4 Hold Strap 3
5 Hydraulic Slip Spring 12
6 Volume Tube 1
7 Upper Shoe 1
8 Packer Element 2
9 Spacer Ring 1
10 Lower Shoe 1
11 Retainer Bolt 4
12 Screw 2
13 Mechanical Slip Body 1
14 Mechanical Slip w/ Carbide 6
15 Screw 3
16 Split ring collar 1
17 Lower Mandrel 1
18 Dragblock Sleeve 1
19 Dragblock 4
20 Dragblock Spring 12
21 Screw 1
22 Keeper Ring 1
23 O Ring 1
24 O Ring 6
25 O Ring 1
26 O Ring 1
27 O Ring 1


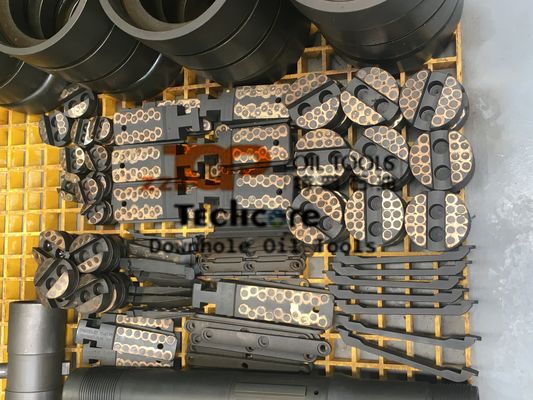

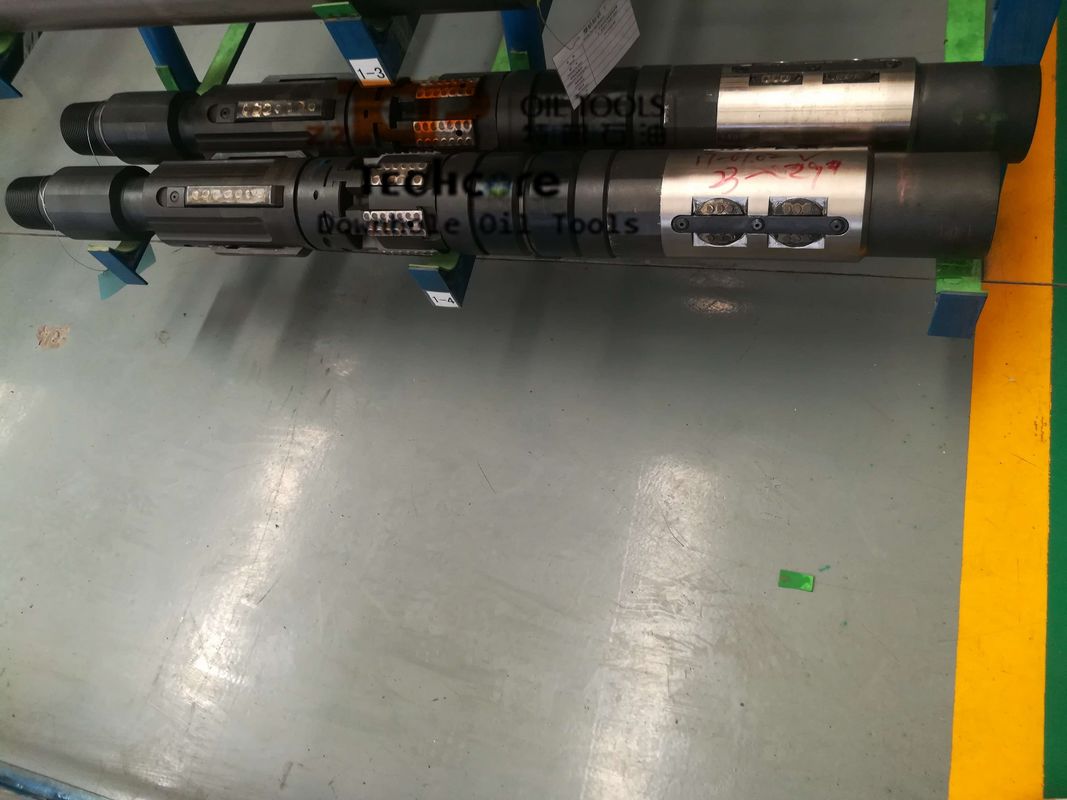

APR Mechanical Setting Retrievable Packer High Pressure 0APR Mechanical Setting Retrievable Packer High Pressure 1
