5 Inch Drill Stem Testing Gas Well Downhole Valve

5 Inch Drill Stem Testing Gas Well Downhole Valve
5 Inch Drill Stem Testing Gas Well Downhole Valve 5 Inch Drill Stem Testing Gas Well Downhole Valve

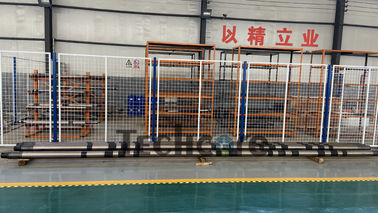

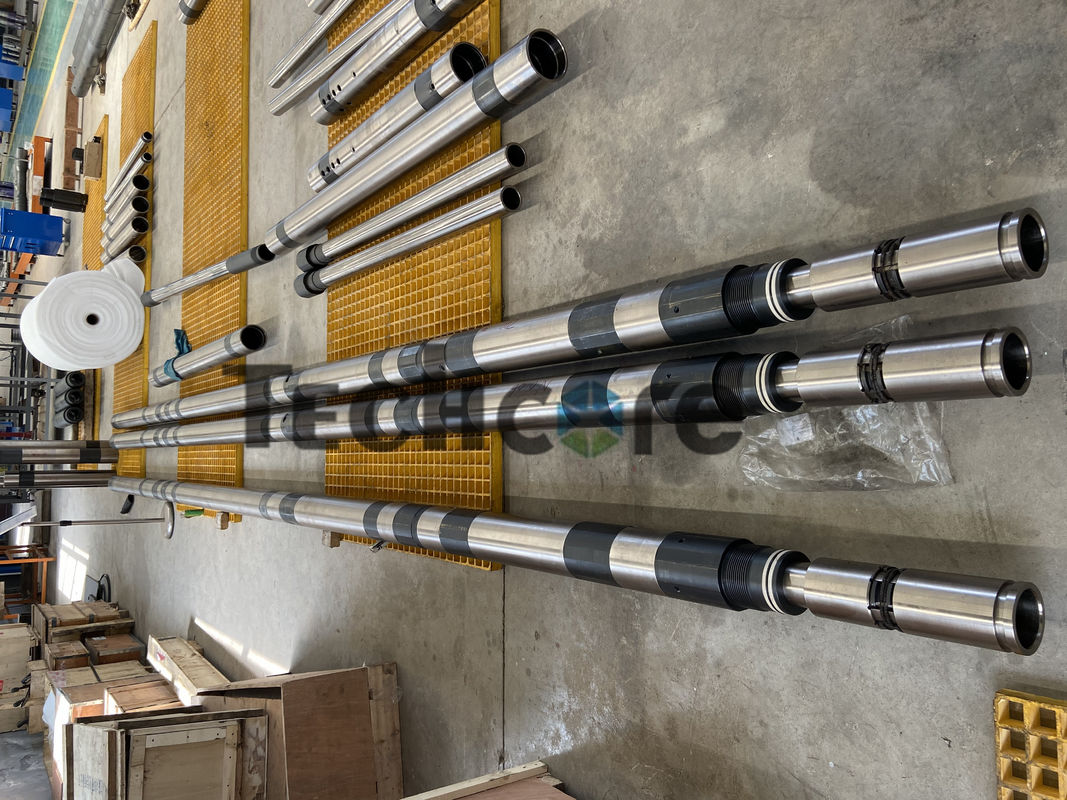

Large Image :  5 Inch Drill Stem Testing Gas Well Downhole Valve

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV
Model Number: Downhole tester valve
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 20-30 days
Supply Ability: 100 sets/month

5 Inch Drill Stem Testing Gas Well Downhole Valve

Description
Usage: Tester Valve Application: Gas Well Drill Stem Testing
Material: Alloy Steel Tool Size: 5 Inch
Standard: NACE MR0175 Working Condition: H2S Service Above 175oF
Working Pressure: 15000 Psi Connection: CAS Box X Pin
Delivery: 20-30 Days
High Light:

pressure safety valve

,

downhole valve

Gas Well Downhole Tester Valve High Pressure APR Tools For Drill Stem Testing



The donwnhole tester valve is used to drill stem testing operation in oil and gas well. The downhole tester valve we manufactured is the Halliburton select tester valve, which is a full opening, annulus pressure operated high pressure tester valves.



Structure of the Downhole  Tester Valve



The select tester valve is composed of four basic sections; ball valve section, upper hydraulic section, nitrogen section and the metering section.



* The ball valve section contains the ball valve and the mechanism that rotates the ball when the tool is activated; the ball is rotated to the open position allowing the reservoir to flow into the testing string.



* The upper hydraulic section is contained between the upper annulus ports and the nitrogen filler valve. The critical part of this section is the metering (power) cartridge and selector.



* The metering section is the metering cartridge that provides the area that the operating pressure acts over to open the valve. The metering cartridge has two parallel flow paths through it, Each path only allows fluid to move in a single direction.



* The nitrogen section is composed of the nitrogen case, nitrogen mandrel, floating piston and nitrogen filler valve. The nitrogen acts as an adjustable spring and provides the force needed to close the ball valve. The nitrogen section is charged at the surface to a predetermined pressure according to surface temperature, bottom hole temperature and hydrostatic pressure. These values do not have to be exact because the floating piston allows the tool to compensate for small inaccuracies (approximately 10%).



Specification of Downhole tester valve



NO. Specification 5”
1 OD 5”(127mm)
2 ID 2.25”(57mm)
3 Length(mm) 288.2”(7319.5mm)
4 Working pressure 15000 PSI(105Mpa)
5 Maximum open pressure differential 5000PSI(35Mpa)
6 Tensile strength(Yield) 2020.5kN
7 Internal Pressure Strength 151Mpa
8 External Pressure Strength 141Mpa
9 Torque strength 30.9kN.m
10 Service Environment Mud, crude oil, natural gas with H2S, Apply to NACE MR0175-2003
11 End connection 3 7/8CAS. BXP, 3 1/2 IF BXP
12 Service temperature -20oF~400oF


5 Inch Drill Stem Testing Gas Well Downhole Valve 0   5 Inch Drill Stem Testing Gas Well Downhole Valve 1







Drill stem testing tools for cased hole, open hole and slim hole are available as below



RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,

Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve

Circulating valve: omni circulating valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve

Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve,  sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.



Techcore Service



Strict quality control system



Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..



Continuous after sales service



Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.



Welcome to contact us for more information of the downhole tools!
