ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization

ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization
ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization

Large Image :  ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization

Product Details:
Place of Origin: CHINA
Brand Name: Techcore
Certification: ISO, BV
Model Number: CT Fluted Centralizer
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polly wood, suitable for sea and air shipment
Delivery Time: 30-45 days
Supply Ability: 200 sets/month

ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization

Description
Application: Coiled Tubing Centralization Working Pressure: 5000 Psi
Tool OD: 2 Inch To 4.5 Inch Connection: AMMT Pin X Box
Standard: NACE MR0175 Working Condition: Standard
Material: Alloy Steel Type: Fluted Centralizer
Processing Type: Forging Condition: New
Product Name: Coiled Tubing Fluted Centralizer
High Light:

coiled tubing downhole tools

,

thru tubing tools

Fluted Centralizer for Coiled Tubing Service BHA Fluted Centralizer

Introduction of fluted centralizer


The fluted centralizer is a kind of coiled tubing centralizer, which is designed to support the pipe of the coiled tubing work string tool, so that the tool string is centered in the salvage process, which is convenient for tool positioning or improving stability of the tool string.
The Fluted Centralizer can also be applied for cases to drift the well bore. With the fluted design, the coiled tubing centralizer allows for sufficient fluid bypass, this feature of the fluted centralizer enable efficient tool string conveyance in well fluids.


Application of CT fluted centralizer


*  The fluted centralizer is to centralize a tool string or lower BHA in coiled tubing service

*  The fluted centralizer is worked in specific drifting applications



Features of CT fluted centralizer


*  Full bore design of the fluted centralizer allows the flow through bore
*  The fluted centralizer is made from solid one-piece construction

*  With long service life for the coiled tubing service



Technical parameter of CT fluted centralizer



Tool OD/in Tool ID/in Tension Strength / lb Connection length / in
2.000 0.750 46000 6.000
2.250 0.750 48000 6.000
2.625 0.875 78000 6.000
2.750 1.000 78000 6.000
3.000 1.000 78000 6.000
3.500 1.000 80000 6.000
4.000 1.000 80000 6.000
4.250 1.000 100000 10.000
4.500 1.250 100000 10.000

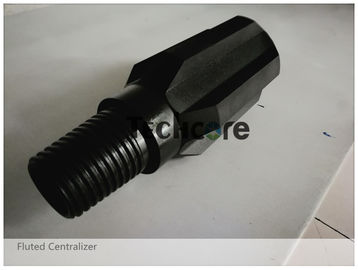

Coiled Tubing Fluted Centralizer


ISO Standard BHA Fluted Centralizer For Coiled Tubing Centralization 0






The related downhole oil tools manufactured by Techcore oil tools:



* Drill stem testing tools for cased hole, open hole and slim hole:

Retrievable packer, circulating valve, safety joint, downhole tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.





*Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.



* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body



* Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.



Welcome to contact us for more information about the downhole tools and our best service!!
