Product Details:
|
| Type: | Oil Well Coiled Tubing Operation | Working Pressure: | 5000 Psi |
|---|---|---|---|
| Tool Size: | 1.75 Inch | Connection: | Standard Box X Pin |
| Standard: | NACE MR0175 | Working Condition: | H2S Service |
| Material: | Alloy Steel | Application: | Oil Well Coiled Tubing Operation |
| High Light: | coiled tubing downhole tools,downhole drilling tools |
||
HPHT Coiled Tubing Tools Dual Activated Circulation Valve NACE MR0175 Standard
Overview of CT Dual Activated Circulation Valve
The Dual Activated Circulation Valve features with dual function Circulating & Burst Disc Sub, so the valve is designed as a circulating safety component within the Bottom Hole Assembly. Dual activeated circulating valve is a sort of the coiled tubing dowhole circulating tool with the two functions of shear pin and rupture disc.
The circulation is made by break the rupture disc, and provide adequate circulation channels to pump the ball, or dropping the ball and applying the pressure the make the maximum circulation. The circulating valve is applied to coiled tubing operation, and the rupture disc can be changed by screw plug.
Features of CT Dual Activated Circulation Valve
* Dual function design: Shear pin and rupture disc
* It is easy to install and operate the Dual Activated Circulation Valve
* The circulating valve with large bore cycle
Application of CT Dual Activated Circulation Valve
* The dual activated circulation valves applied for standard and H2S Coiled Tubing Operations
* High pressure and High temperature Oil well CT operation
Technical parameter of Coilled tubing tools Dual Activated Circulation Valve
| Size | OD | ID | Working Condition | Working Pressure |
| 1 11/16” | 1.687” | 0.406” | H2S | 5,000 PSI |
| 1 3/4” | 1.750” | 0.406” | H2S | 5,000 PSI |
| 2 1/8” | 2.125” | 0.406” | H2S | 5,000 PSI |
| 2 1/4” | 2.250” | 0.625” | H2S | 5,000 PSI |
| 2 3/8” | 2.375” | 0.625” | H2S | 5,000 PSI |
| 2 7/8” | 2.875” | 0.750” | H2S | 5,000 PSI |
| 3 1/8” | 3.125” | 0.750” | H2S | 5,000 PSI |
| Remark: Please contact us for more specification | ||||

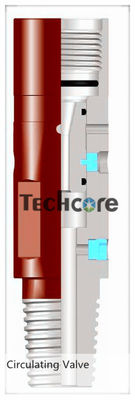

Coiled Tubing Tools Dual Activated Circulation Valve
