Product Details:
|

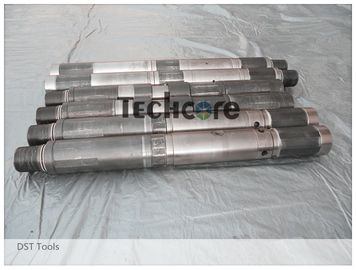

| Tools: | Tubing String Testing Valve | Type: | APR DST Tools |
|---|---|---|---|
| Standard: | NACE MR0175 | Working Temperature: | Max. To 450 OF |
| Working Pressure: | 15000psi | Working Condition: | H2S Service Above 175oF |
| Tool Size: | 5 Inch | Connection: | CAS Box X Pin |
| High Light: | well testing tools,oil well drilling tools |
||

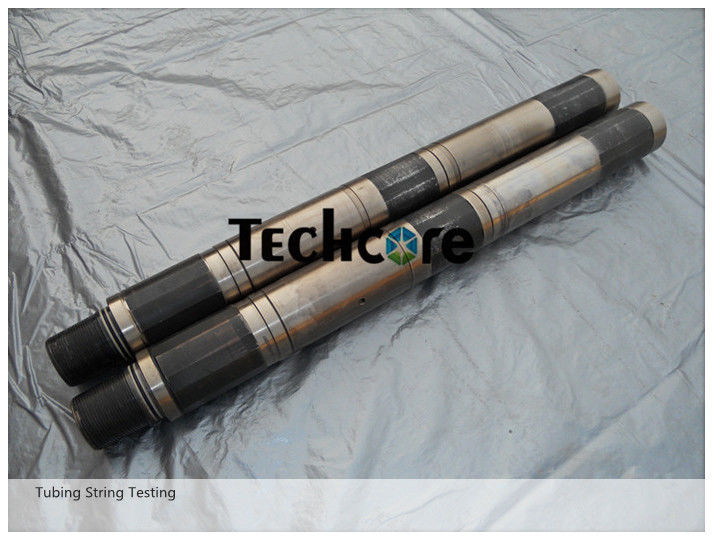

5 Inch Drill Stem Test Tools Tubing String Testing Valve 15000 PSI Antirust
Introudction of Tubing String Testing Valve
The tubing string testing valve - TST valve is designed in full-opening and operated by annulus pressure in the hole. the TST valve is used to pressure-test the work string during running in the hole. The TST valve is operated after it is stung into a permanent packer or a retrievable packer is set.
The TST valve requires a differential pressure between the annulus and the tubing to shear. The TST valve can also be applied for pip flexing if it is run below an annulus pressure-responsive circulating valve.
Structure of the Tubing String Testing Valve
* Flapper valve and spring.
* Locking dogs
* Shear pin section
Operation of the TST Valve
When the tubing string testing flapper valve opens, it allows the workstring to fill up. The shear pins hold the mandrel in place. The workstring can be pressure-tested as many times as required as it is run in the well. After string testing finished, increasing annulus pressure made the flapper valve open, also can process closing well operation for tester valve (pressure-responsive valve).
Application of Tubing String Testing Valve
* Cased hole drill stem testing operation.
* Oil well flow operations
Features and Benefits of Tubing String Testing Valve
* It only need 4psi to open the flapper valve.
* The testing string can be pressure-tested as many times as required as it is in the hole.
* Valve shear rating can be pre-determined at 500psi increments.
* Valve can also be used for pipe flexing.
Technical parameter of Tubing String Testing Valve
| No | Specification | 5” |
| 1 | O.D. | 127.5mm |
| 2 | Bore Diameter | 57mm |
| 3 | Length | 1333mm |
| 4 | Flapper valve diff. pressure | 70Mpa |
| 5 | Working pressure | 105Mpa |
| 6 | Internal pressure strength | 129Mpa |
| 7 | External pressure strength | 120Mpa |
| 8 | Tensile strength | 1320KN |
| 9 | Torque strength | 23KN.m |
| 10 | Shear pin valve | 3.5Mpa/pc |
| 11 | Service | H2S,NACE MR0175(>175oF) |
| 12 | Working temperature | -29oC+204oC |
| 13 | Connection thread | 3 7/8CAS. BXP or 3 1/2 IF.BXP |
TST Inner seal pressure test chart
Tubing String Testing Valve 5" - 15000 psi Cased Hole Drill Stem Test Tools
